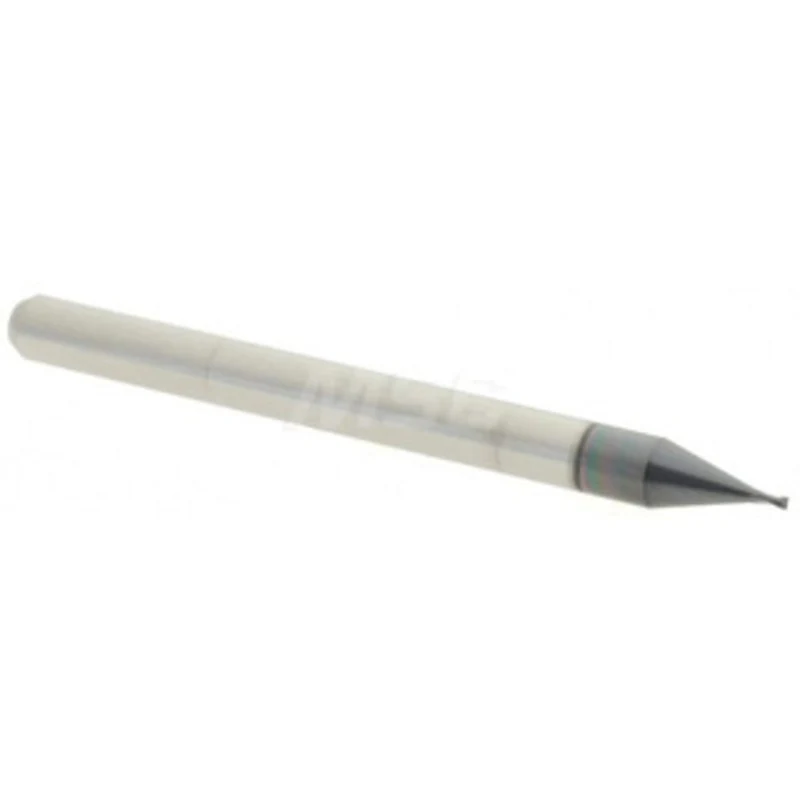

Accupro 0.022, 0.035 LOC, 1/8 Shank Diam, 1-1/2 OAL, 2 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series Miniature 6500274 – 37290897

Accupro 0.022″, 0.035″ LOC, 1/8″ Shank Diam, 1-1/2″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series Miniature

Manufacturer Part #: 6500274

S/N: 37290897

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.0220
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.0350
Shank Diameter (Inch)
1/8
Shank Diameter (Decimal Inch)
0.1250
Overall Length (Decimal Inch)
1.5000
Overall Length (Inch)
1-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Stub
Length Of Cut Range (Decimal Inch)
0.0000 – 0.1000
Mill Diameter Tolerance
+0.0000/-0.0010 in
Shank Diameter Tolerance
-0.0001/-0.0003 in
