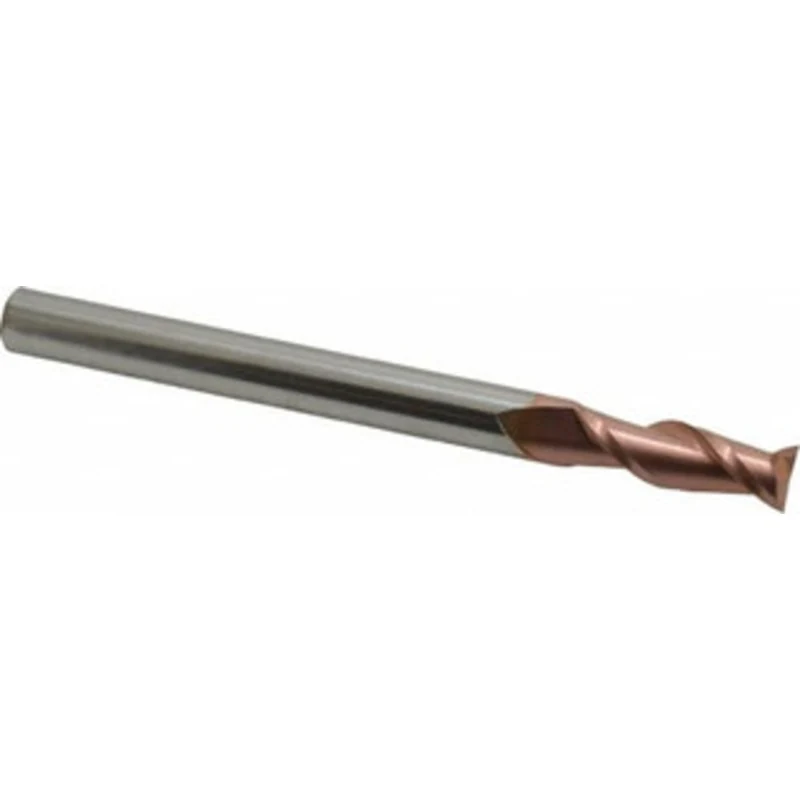

Accupro 1/2, 1-1/2 LOC, 1/2 Shank Diam, 6 OAL, 2 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 40 Helix, Centercutting, Right Hand Cut, Right Hand Flute 12181846 – 87810271

Accupro 1/2″, 1-1/2″ LOC, 1/2″ Shank Diam, 6″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 40 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 12181846

S/N: 87810271

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.5
Length of Cut (Inch)
1-1/2
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5
Overall Length (Decimal Inch)
6
Overall Length (Inch)
6
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
40
Coating/Finish
TiCN
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Extra Long
Length Of Cut Range (Decimal Inch)
1.5000 – 2.0000
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
-0.0001/-0.0004 in
UNSPSC Code
27112803
