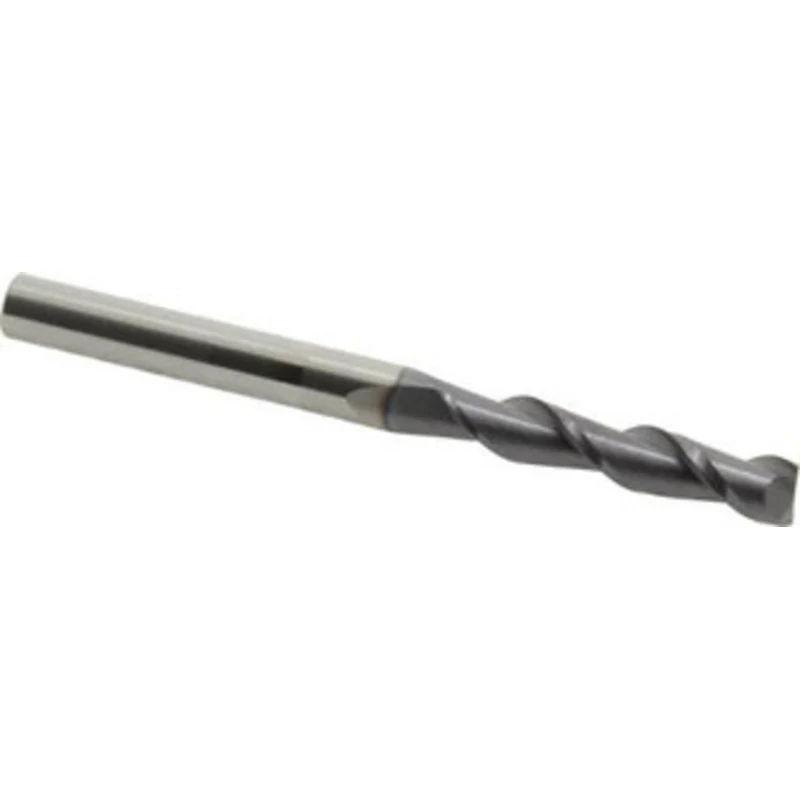

Accupro 1/4, 1-1/4 LOC, 1/4 Shank Diam, 3 OAL, 2 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 40 Helix, Centercutting, Right Hand Cut, Right Hand Flute 12181784 – 82277922

Accupro 1/4″, 1-1/4″ LOC, 1/4″ Shank Diam, 3″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 40 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 12181784

S/N: 82277922

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.2500
Mill Diameter (Inch)
1/4
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.2500
Length of Cut (Inch)
1-1/4
Shank Diameter (Inch)
1/4
Shank Diameter (Decimal Inch)
0.2500
Overall Length (Decimal Inch)
3.0000
Overall Length (Inch)
3
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
40
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Extra Long
Length Of Cut Range (Decimal Inch)
1.2500 – 1.5000
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
-0.0001/-0.0004 in
