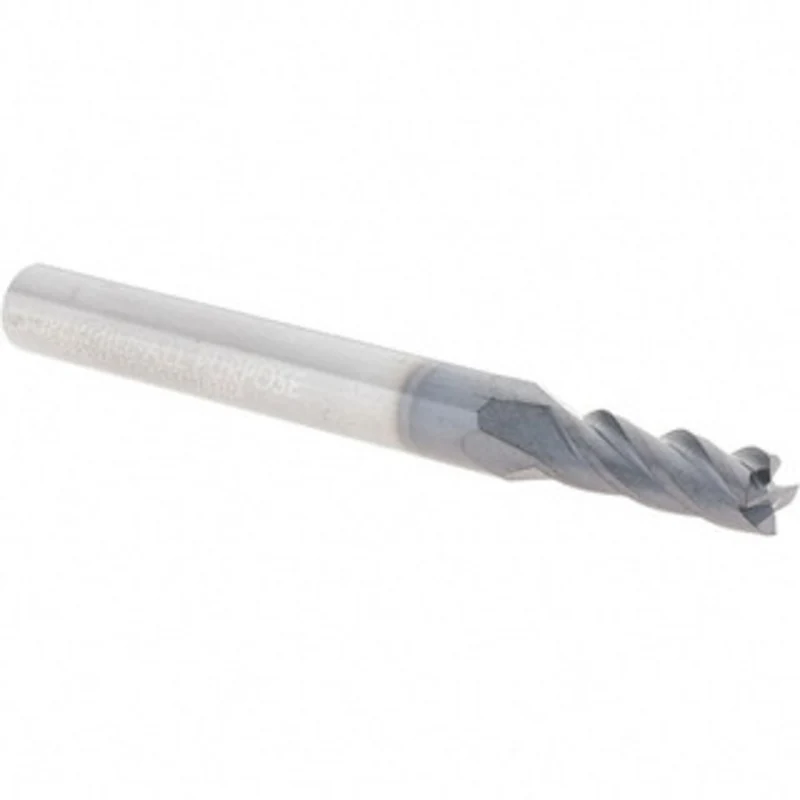

Accupro 15/64, 3/4 LOC, 1/4 Shank Diam, 2-1/2 OAL, 3 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 40 Helix, Centercutting, Right Hand Cut, Right Hand Flute 12181945 – 09798539

Accupro 15/64″, 3/4″ LOC, 1/4″ Shank Diam, 2-1/2″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 40 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 12181945

S/N: 09798539

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.2344
Mill Diameter (Inch)
15/64
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.7500
Length of Cut (Inch)
3/4
Shank Diameter (Inch)
1/4
Shank Diameter (Decimal Inch)
0.2500
Overall Length (Inch)
2-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
40
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Regular
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
-0.0001/-0.0004 in
