Home › Cutting Tools & Abrasives › End Mills › Accupro 3/16, 3/8 LOC, 3/16 Shank Diam, 2 OAL, 4 Flute, Solid Carbide Square End Mill Double End, TiCN Finish, Spiral Flute, 40 Helix, Centercutting, Right Hand Cut, Right Hand Flute 12185198 – 07763618
Accupro 3/16, 3/8 LOC, 3/16 Shank Diam, 2 OAL, 4 Flute, Solid Carbide Square End Mill Double End, TiCN Finish, Spiral...
End Mills

Accupro 3/16, 3/8 LOC, 3/16 Shank Diam, 2 OAL, 4 Flute, Solid Carbide Square End Mill Double End, TiCN Finish, Spiral Flute, 40 Helix, Centercutting, Right Hand Cut, Right Hand Flute 12185198 – 07763618

Original price was: $39.83.Current price is: $11.95.

Availability: 8 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 7763618
CATEGORY: End Mills
Description

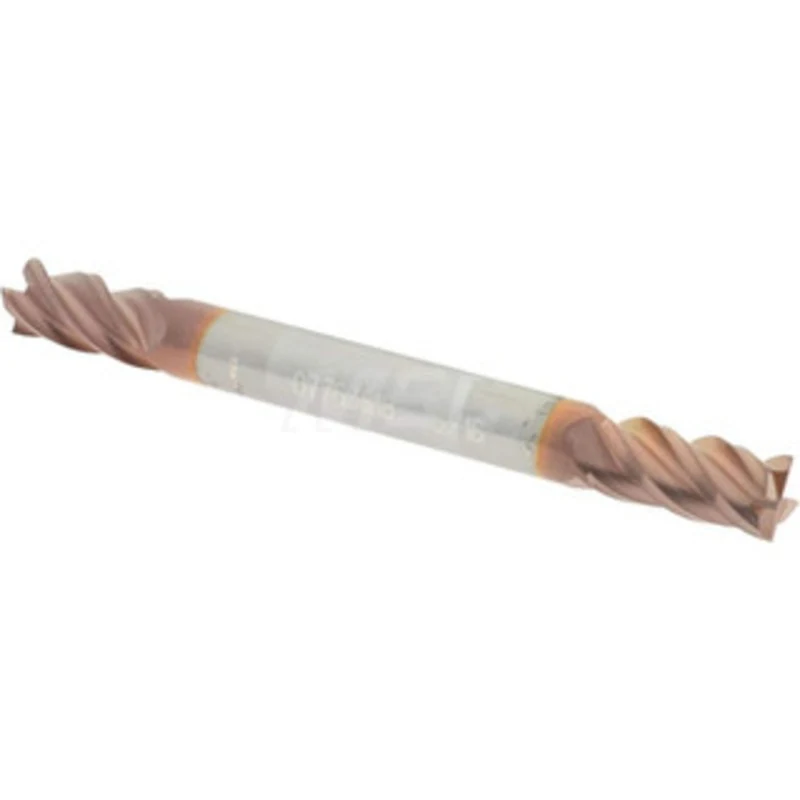

Accupro 3/16″, 3/8″ LOC, 3/16″ Shank Diam, 2″ OAL, 4 Flute, Solid Carbide Square End Mill Double End, TiCN Finish, Spiral Flute, 40 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 12185198

S/N: 07763618

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1875
Mill Diameter (Inch)
3/16
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.3750
Length of Cut (Inch)
3/8
Shank Diameter (Inch)
3/16
Shank Diameter (Decimal Inch)
0.1875
Overall Length (Decimal Inch)
2.0000
Overall Length (Inch)
2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
40
Variable Helix
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Stub
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
-0.0001/-0.0004 in

Product Information
