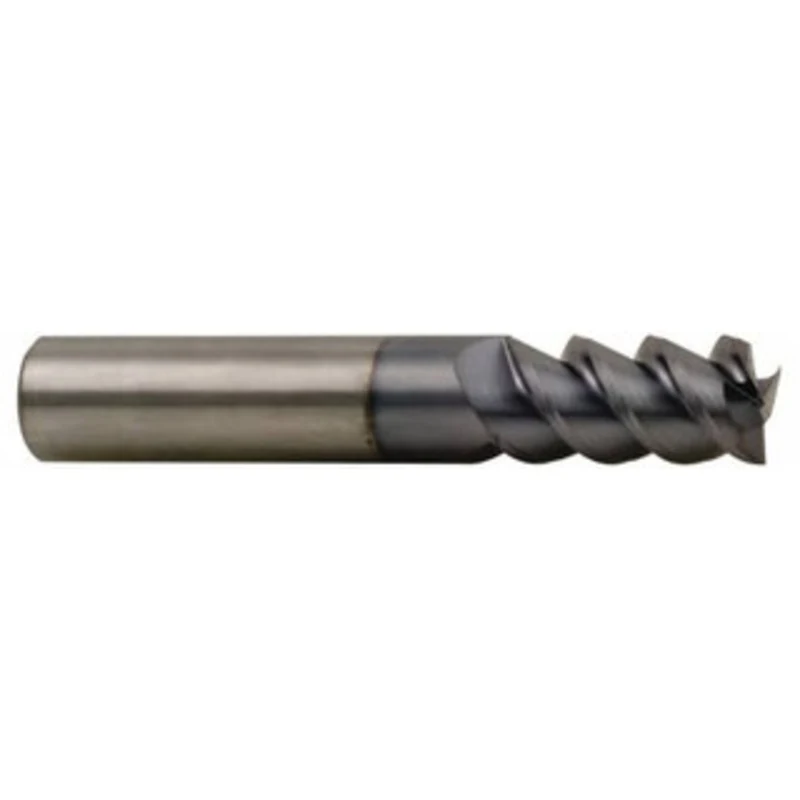

Accupro 5/16, 1-1/4 LOC, 5/16 Shank Diam, 4 OAL, 3 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 60 Helix, Centercutting, Right Hand Cut, Right Hand Flute 360L3125C4 – 56210347

Accupro 5/16″, 1-1/4″ LOC, 5/16″ Shank Diam, 4″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 60 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 360L3125C4

S/N: 56210347

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3125
Mill Diameter (Inch)
5/16
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.25
Length of Cut (Inch)
1-1/4
Shank Diameter (Inch)
5/16
Shank Diameter (Decimal Inch)
0.3125
Overall Length (Decimal Inch)
4
Overall Length (Inch)
4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
60
Coating/Finish
TiCN
Variable Helix
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Long
Length Of Cut Range (Decimal Inch)
1.2500 – 1.5000
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
+0.0001/-0.0004 in
UNSPSC Code
27112803
