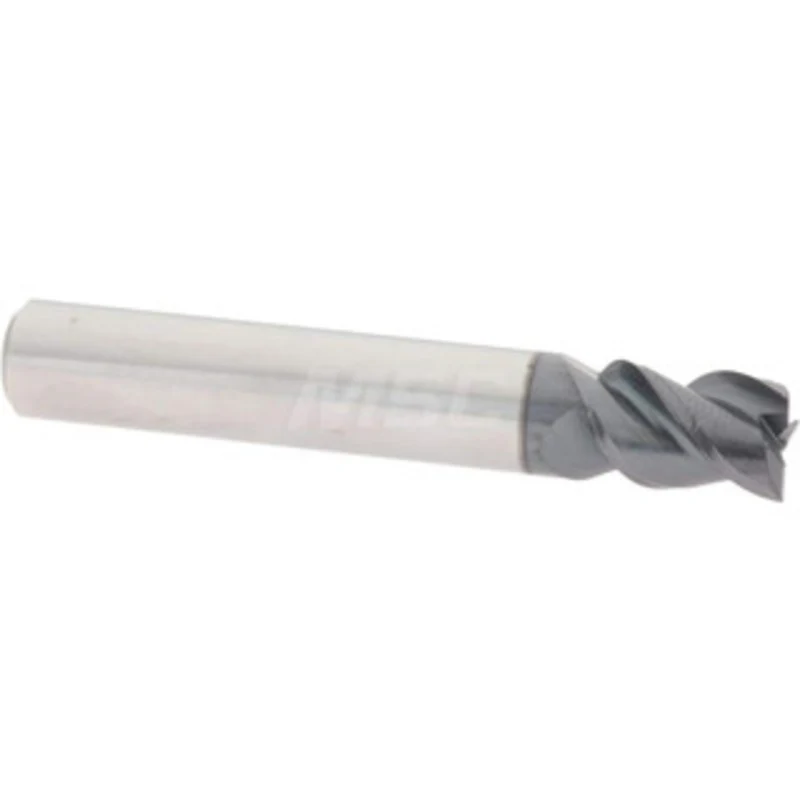

Accupro 5/16, 7/16 LOC, 5/16 Shank Diam, 2 OAL, 3 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, Centercutting, Right Hand Cut, Right Hand Flute 361S3125C11 – 93261980

Accupro 5/16″, 7/16″ LOC, 5/16″ Shank Diam, 2″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 361S3125C11

S/N: 93261980

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3125
Mill Diameter (Inch)
5/16
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.4375
Length of Cut (Inch)
7/16
Shank Diameter (Inch)
5/16
Shank Diameter (Decimal Inch)
0.3125
Overall Length (Decimal Inch)
2
Overall Length (Inch)
2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coating/Finish
AlTiN
Variable Helix
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Stub
Length Of Cut Range (Decimal Inch)
0.3000 – 0.5000
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
+0.0001/-0.0004 in
UNSPSC Code
27112803
