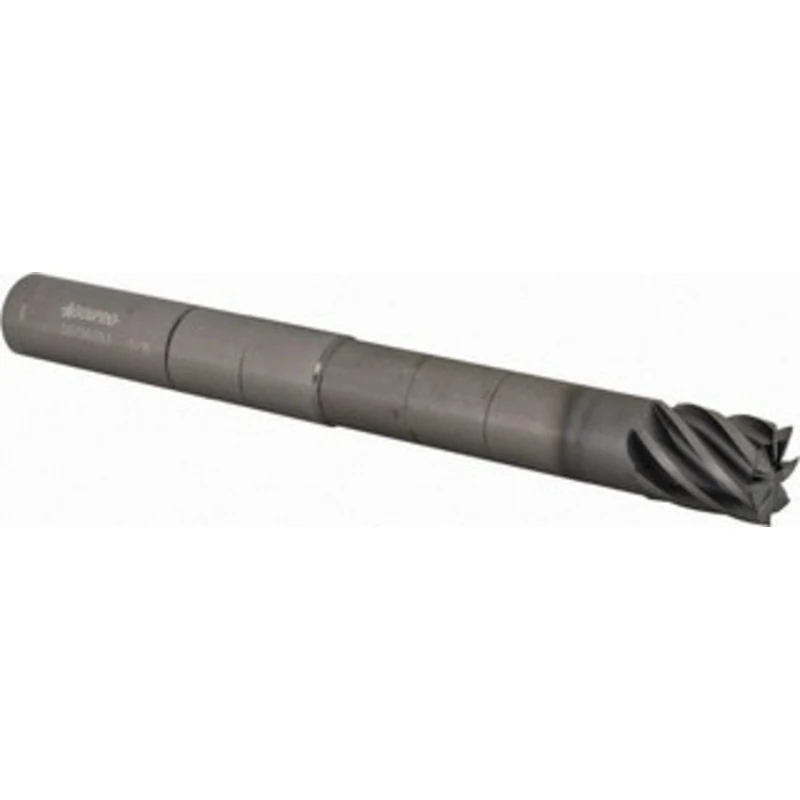

Accupro 5/8, 3/4 LOC, 5/8 Shank Diam, 6 OAL, 7 Flute, Solid Carbide Square End Mill Single End, nACRo Finish, Spiral Flute, 37.50 Helix, Centercutting, Right Hand Cut, Right Hand Flute 12180830 – 58750753

Accupro 5/8″, 3/4″ LOC, 5/8″ Shank Diam, 6″ OAL, 7 Flute, Solid Carbide Square End Mill Single End, nACRo Finish, Spiral Flute, 37.50 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 12180830

S/N: 58750753

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.6250
Mill Diameter (Inch)
5/8
Number Of Flutes
7
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.7500
Length of Cut (Inch)
3/4
Shank Diameter (Inch)
5/8
Shank Diameter (Decimal Inch)
0.6250
Overall Length (Decimal Inch)
6.0000
Overall Length (Inch)
6
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
Yes
Helix Angle
37.5
Variable Helix
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Neck Length (Decimal Inch)
3.1250
Reach Length (Inch)
3-1/8
Length Of Cut Range (Decimal Inch)
0.7000 – 0.8000
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
-0.0001/-0.0004 in
