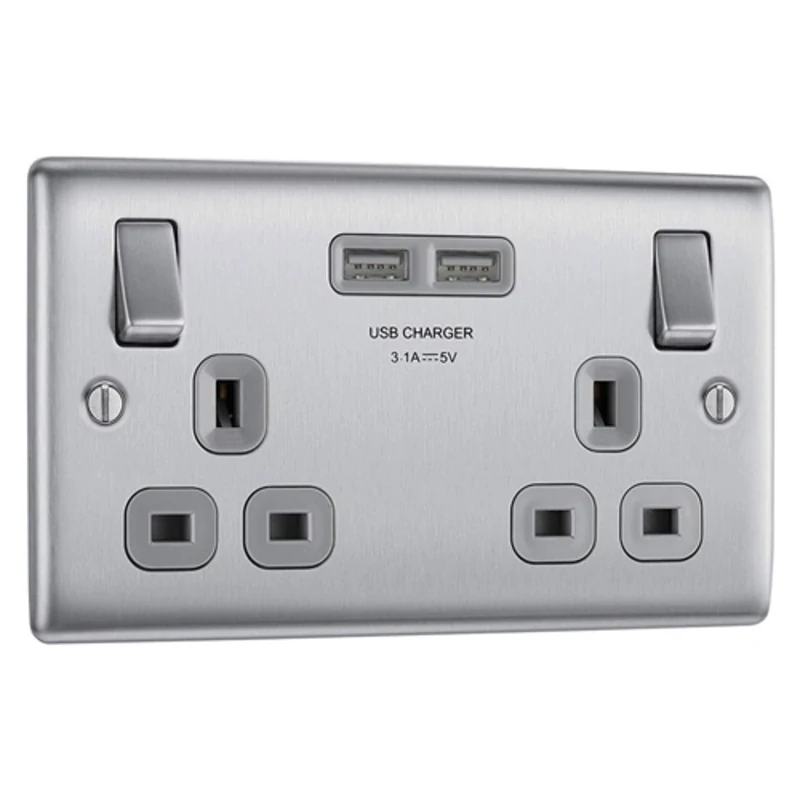

BG 2G USB Switched Socket – Brushed Steel

2G USB Switched Socket ideal for charging iPad, iPhone, tablets, mobiles, cameras and more. The subtle design will blend with any decor and is suitable for domestic or commercial applications.

Features

• 2 gang switched socket with outboard rockers
• Twin earth fitted as standard
• 3.1A USB charging output, with charge shared across two outlets
• Smart USB – Standby mode when device is fully charged – AutoDetect’s the USB device and adjusts charging pattern to suite – protective overload function
• Angled colour-coded terminals with captive screws
• Lightly lacquered surface to reduce fingerprint marks

Technical Specification

• Rating: 13A 240V
• Contact Gap: 3.0mm minimum
• Switch Type: Single Pole
• Terminal Capacity – L & N: 3 x 2.5mm, 3 x 4.00mm & 2 x 6.00mm
• Mounting Box Min Depth: 25mm
• Fixing Centre: 120.6mm
• Standard: BS1363-2:2016
• Dimensions: 8.6 x 14.6 x 3.3cm
• Weight: 0.186kg

Technical Datasheet
