Chuck Size
8″
Spindle
D1-3
Thru Hole
1.97″

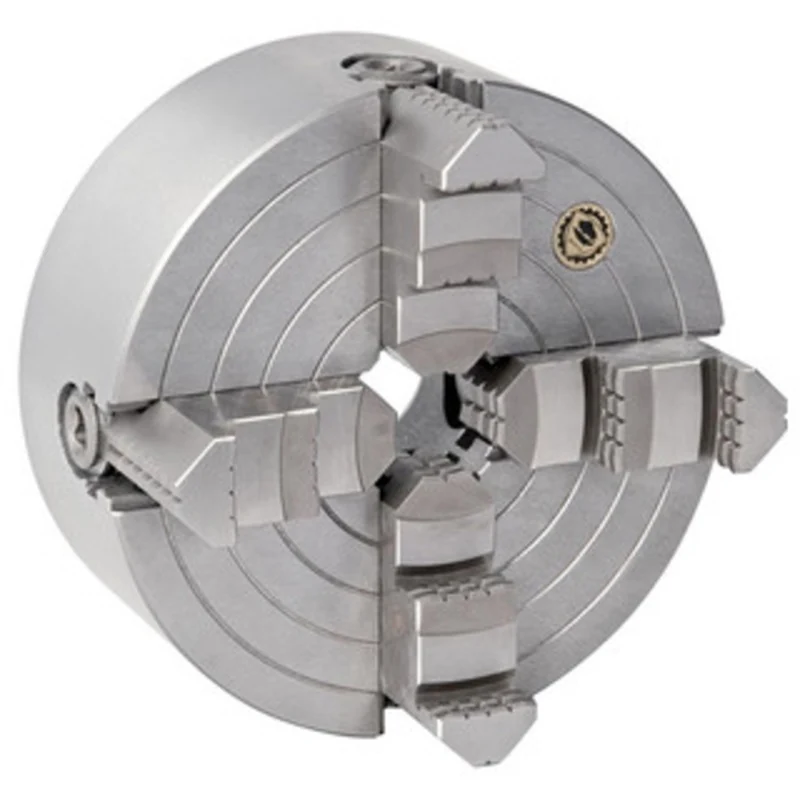

Bison 4-Jaw Independent Lathe Chuck
8″ Size, D1-3 Spindle – 7-853-0833
- Four-jaw standard duty independent Lathe Chucks with solid reversible jaws, spheroidal graphite iron body.
- The jaws are made of high quality carbon steel and hardened. Thrust bearings and operating screws are case hardened steel.
- These chucks feature jaws that are individually adjustable, allow firm gripping of odd shaped work and the jaws allow a square component to be perfectly centered to the chuck while achieving maximum gripping force.
Features:
- Jaws are individually adjustable, allowing firm gripping of odd shaped work
- (4) Jaws allow a square component to be perfectly centered to the chuck while achieving maximum gripping force
- Chuck bodies are semi-steel
- Jaws are made of high quality carbon steel and hardened
- Thrust bearings and operating screws are made of case hardened steel
- Made in Poland
Specifications:
BRAND
BISON
MODEL #
7-853-0833
CHUCK SIZE
8″
SPINDLE
D1-3
MOUNT
Rear
THRU HOLE
1.97″
TOOL MATERIAL
Semi-Steel Body
SELF CENTERING
No
TYPE
Independent Lathe Chuck
FOR USE WITH
D1-3
NO. OF JAWS
4
SERIES
D1
SIZE
8″
WEIGHT
37 lbs.
COUNTRY OF ORIGIN
POLAND
Click to view the Series 7-853 Dimensional Data
See all Bison 4-Jaw Independent Lathe Chucks
