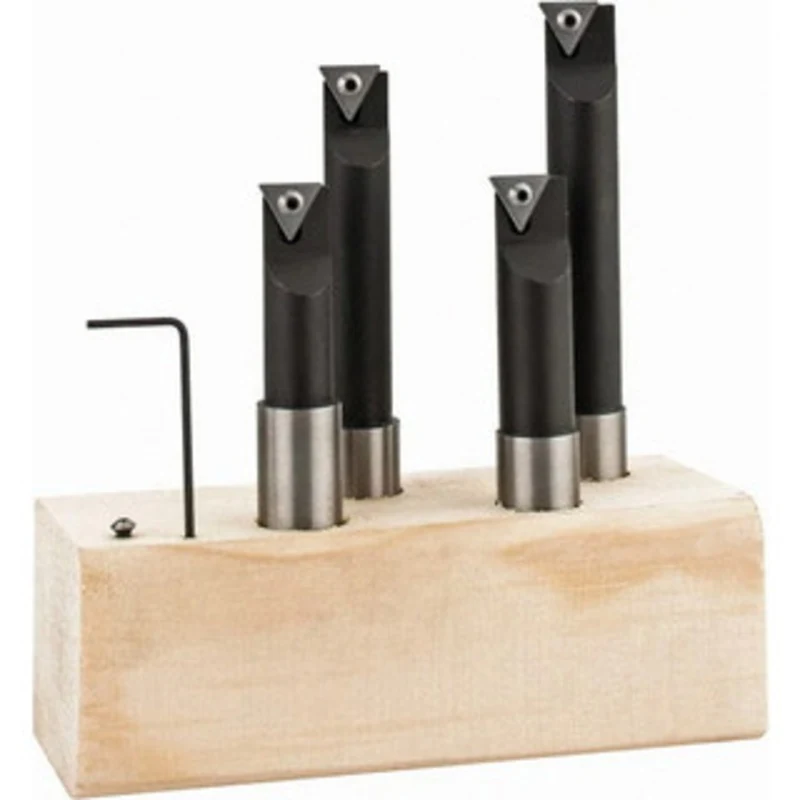

Borite Indexable Boring Bar Set, 4 pc., 1/2 Shank 1B-500 C-5 – 82-940-8

Borite Indexable Boring Bar Set, 4 pc., 1/2″ Shank 1B-500 C-5 – 82-940-8

#78085156

1-1/2, 1-1/4, 2-1/2, 2-1/8″ Max Bore, 1/2″ Min Bore Smallest Bar, 7/16″ Min Bore Largest Bar, Steel Indexable Boring Bar Set
Uses TT Inserts, 1/2″ Shank Diam

• Screw down style

Includes:

Item Number
Description
Shank
Diameter
OL
Length
Bore
Depth
Minimum
Bore
82-936-6
Indexable Boring Bar
1/2″
2-3/4″
1-1/4″
7/16″
82-937-4
Indexable Boring Bar
1/2″
3-5/8″
2-1/8″
7/16″
82-938-2
Indexable Boring Bar
1/2″
3″
1-1/2″
1/2″
82-939-0
Indexable Boring Bar
1/2″
4″
2-1/2″
1/2″

Specifications:

Manufacturer Part #
1B-500 C-5
Minimum Bore Diameter – Smallest Bar (Decimal Inch)
1/2 (2)
Minimum Bore Diameter – Smallest Bar
1/2 in
Minimum Bore Diameter – Largest Bar
7/16 in
Tool Material
Steel
Minimum Bore Diameter – Largest Bar (Decimal Inch)
7/16 (2)
Compatible Insert Style
TT
Compatible Insert Shape
Triangle
Insert Holding Method
Screw
Number Of Toolholders
4
Storage Unit Material
Wood

See all Borite Indexable Boring Bars & Sets
