Brown & Sharpe Value -Line Sine Bar Set – 598-291-60

Brown & Sharpe Value-Line Sine Bar Set – 598-291-60

Eliminate constant table to calculate angles and have blocks to set angles… Simply choose the angle setting blocks required for the desired angle. Quick and simple set-up for use in for grinding, milling drilling and inspection applications.

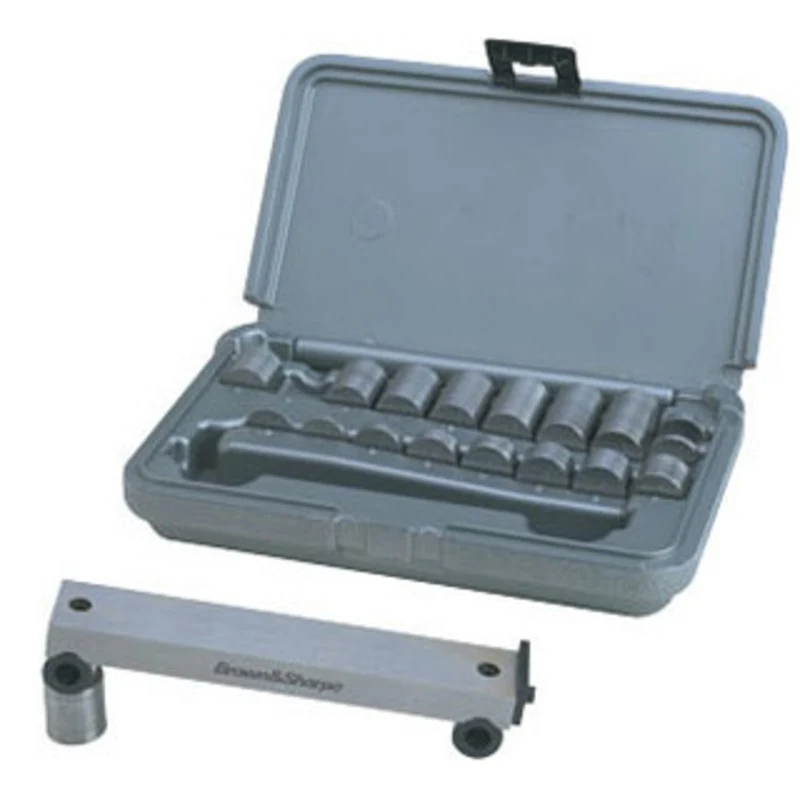

Complete Set Includes:

• One 5″ sine bar, 1″ square, hardened and precision ground.
• Sine bar is parallel top to bottom of rods within.0002″
• 18 Risers with range of 1/2 degrees to 1 degrees resulting angle, including two rise providing “Taper-per-foot” of 1/4 degrees and 1/2 degrees.
• Exact constant within.0001″.
• Shop hardened fitted molded case.
