Checkline Combination Contact and Non-Contact Digital Tachometer – CDT-2000HD

Checkline Combination Contact and Non-Contact Digital Tachometer – CDT-2000HD

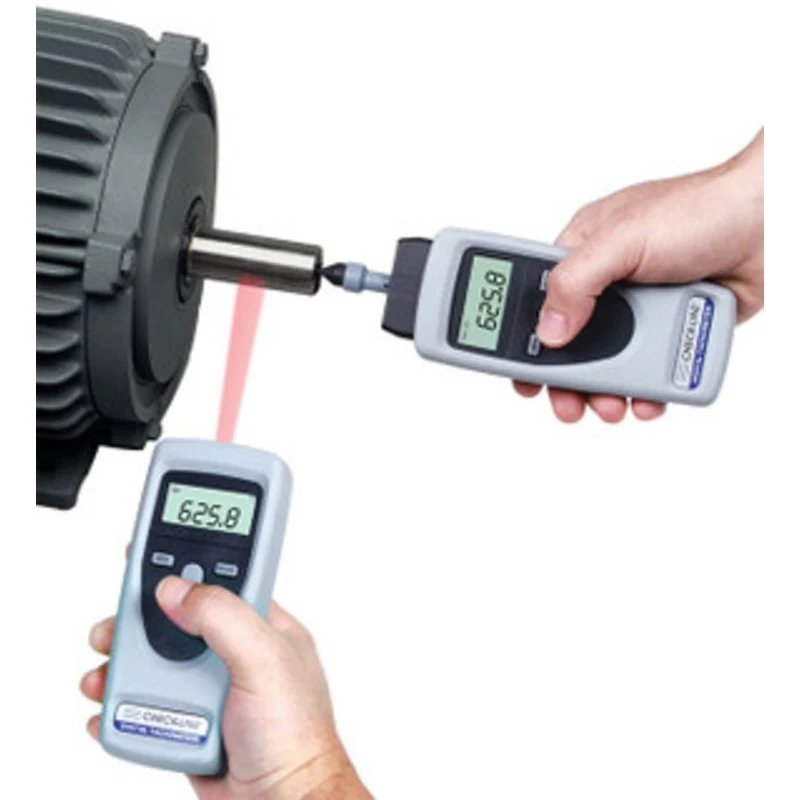

The CHECK-LINE CDT-2000HD Combination Portable Tachometer combines the best features of both contact and non-contact models to accurately measure RPM, surface speed and length. When using the non-contact mode, rotational speed (RPM) is measured using a visible beam of light. The CDT-2000HD can be up to 24 inches away from the small piece of reflective tape that is affixed to the rotating element. In the contact operating mode, the speed is sensed by directly contacting rotating device using one of the contact adapters supplied with the instrument.

The CDT-2000HD’s rugged construction, portability and outstanding features make It an ideal choice for maintenance personnel, machine operators or others in a wide variety of machinery and material handling applications.

A non-contact only version, the CDT-1000HD, is also available. Click here for data sheet.

Also known as Testo 470, Rotaro, TACH-20

Features:

• Measures speeds from as low as 1.00 rpm up to 99,999 rpm
• Accuracy of 0.02% with a resolution of 0.01 RPM
• Includes Traceable calibration Certificate
• Built-in memory stores maximum, minimum, average and last reading for recall to the display
• NEW – Molded Rubber Shell Provides Additional Physical & Environmental Protection
• NEW – Now includes larger 6 inch circumference Surface Speed Wheel standard
• NEW – Can be set for use with 2 optional-sized surface speed wheels (12 inch or 10 cm circumference)

Applications:

Measuring Ranges:

RPM

Non-Contact
1-99,999

Contact
1-19,999

Surface Speed
6″* (Standard)
12″*
0.1 m*

m/min
0.10-1,524
0.40-609.6
0.10-1,999

ft/min
0.40-5,000
0.40-2,000
0.40-6,550

in/min
4.00-60,000
4.00-24,000
4.00-78,700

m/sec
0.10-25.40
0.10-10.16
0.10-33.30

ft/sec
0.10-83.33
0.10-33.33
0.10-109

Total Length

Meters
99,999

Feet
99,999

Inches
99,999

* Note: Sizes listed are the circumference of measuring wheel

LCD Display:

• Units of Measure Indicators show the user-selected units of measure.
• Contact Indicator shows if contact or non-contact operation is selected.
• Low Battery Indicator alerts the operator if the batteries are low.
• On-Target Indicator confirms that the measurements are reliable.
• Memory Indicators are illuminated when the maximum, minimum, average and last readings are recalled to the display for viewing.

Specifications:

Measuring Ranges

RPM
Non-Contact: 1.00 – 99,999 rpm
Contact: 1.00 – 19,999 rpm

Surface Speed
0.30 – 6,500 feet/min
0.10 – 1,999 meters/min
4.0 – 78,000 inches/min

Length
0.01 – 99,999 feet
0.02 – 99,999 meters
1.0 – 99,999 inches

General Specifications

Resolution.01 from 0 – 100
.1 from 100 – 1,000
1 from 1000 – 99,999

Accuracy
0.02% of reading or 1 digit

Display
5 – Digit LCD, 10mm high

Decimal Point
Automatic

Memory System
Maximum, minimum, and last reading (retained in memory for the life of the batteries)

Measurement System
Non-Contact: Visible LED light beam
Contact: Contact adapter

Engineering Units
RPM: RPM
Surface Speed: Ft/min, inch/min & meters/min
Length: Feet, inches, meters

Sensing Distance
Up to 24 inches (60 cm)

Display Update Time
0.5 seconds or one measuring

Auto Power Off
After 30 seconds of non-use (minimum, maximum and last reading retained in memory)

Battery Life
40 hours continuous use

Battery
2 AA (1.5 V) or rechargeable

Weight
6 ounces (170 grams)

Housing Material
ABS Plastic housing with removable protective rubber shell

Operating Temperature
32 to 122 F (0 to 50 C)

Storage Temperature
-4 to 150 F (-20 to 70 C)

Accessories included
Contact adapter, cone tip, universal surface speed wheel, reflective tape, operating instructions and foam-fitted, hard plastic carrying case

Optional Accessories
Shaft extension, 3.15 inches (80 mm)

Warranty
5 years

Calibration Certificate
Included

Click to view the Instruction Manual

Complete Kit:

• The CDT-2000HD includes the Tachometer, Slide-In Contact Adapter, 6″ &.1m Surface Speed Wheels, Cone Tip, Funnel Tip, Extension Shaft, Reflective Tape, Two (2) AA Batteries (1.5 V), Calibration Certificate and Operating Instruction Manual — all supplied in a foam-fitted, hard-plastic Carrying Case.
