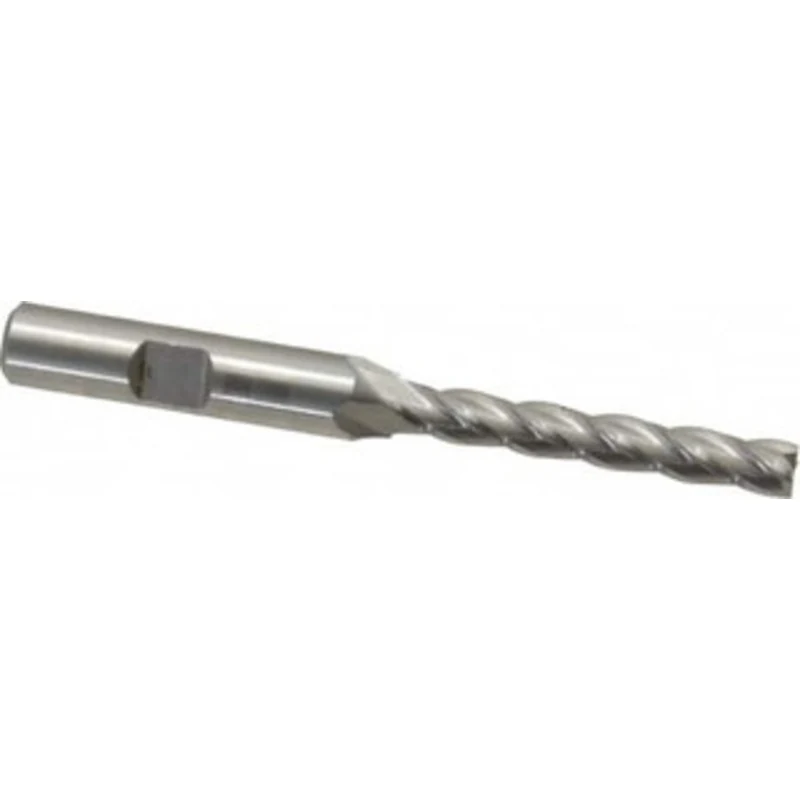

Cleveland 1/4, 1-3/4 LOC, 3/8 Shank Diam, 3-9/16 OAL, 4 Flute, High Speed Steel Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series HG-4C C41381 – 87417010

Cleveland 1/4″, 1-3/4″ LOC, 3/8″ Shank Diam, 3-9/16″ OAL, 4 Flute, High Speed Steel Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series HG-4C

Manufacturer Part #: C41381

S/N: 87417010

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.2500
Mill Diameter (Inch)
1/4
Number Of Flutes
4
End Mill Material
High Speed Steel
Length of Cut (Decimal Inch)
1.7500
Length of Cut (Inch)
1-3/4
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Inch)
3-9/16
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material
Cast Iron, Non-Ferrous Metal, Steel
Primary Workpiece Material Code
K, N, P
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical, Weldon Flat
Length Type
Extra Long
Length Of Cut Range (Decimal Inch)
1.5000 – 2.0000
Series
HG-4C
