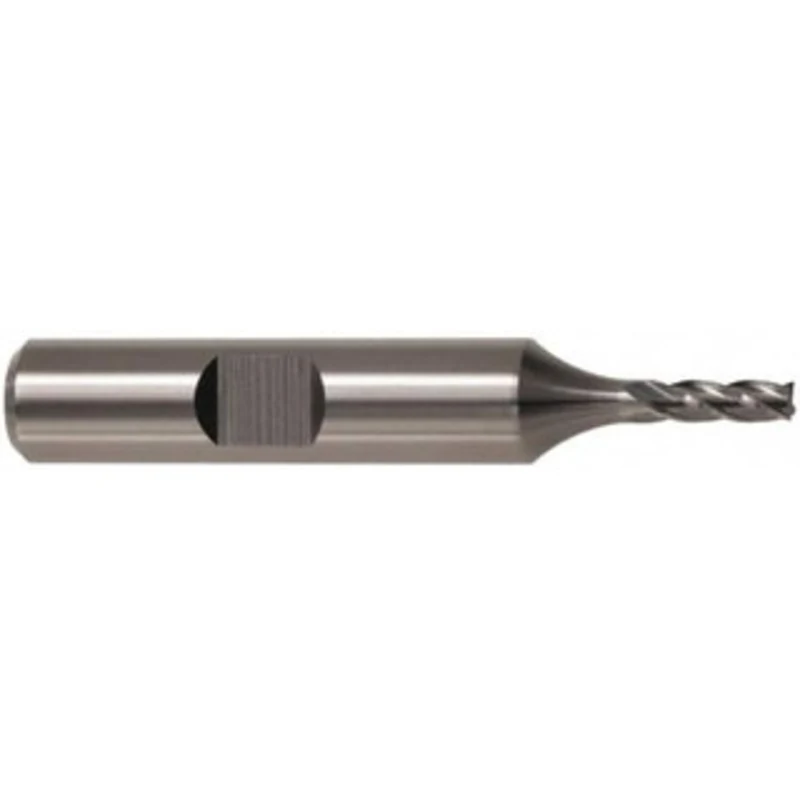

Cleveland 1/4, 1/4 LOC, 3/8 Shank Diam, 2-1/16 OAL, 4 Flute, Powdered Metal Square End Mill Single End, Uncoated, Spiral Flute, 37 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series PM-4 C43210 – 87441655

Cleveland 1/4″, 1/4″ LOC, 3/8″ Shank Diam, 2-1/16″ OAL, 4 Flute, Powdered Metal Square End Mill Single End, Uncoated, Spiral Flute, 37 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series PM-4

Manufacturer Part #: C43210

S/N: 87441655

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.2500
Mill Diameter (Inch)
1/4
Number Of Flutes
4
End Mill Material
Powdered Metal
Length of Cut (Decimal Inch)
0.2500
Length of Cut (Inch)
1/4
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Inch)
2-1/16
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
37
Primary Workpiece Material Code
H, K, M, P, S
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical, Weldon Flat
Material Grade
M42
Length Type
Stub
Length Of Cut Range (Decimal Inch)
0.2000 – 0.3000
Series
PM-4
