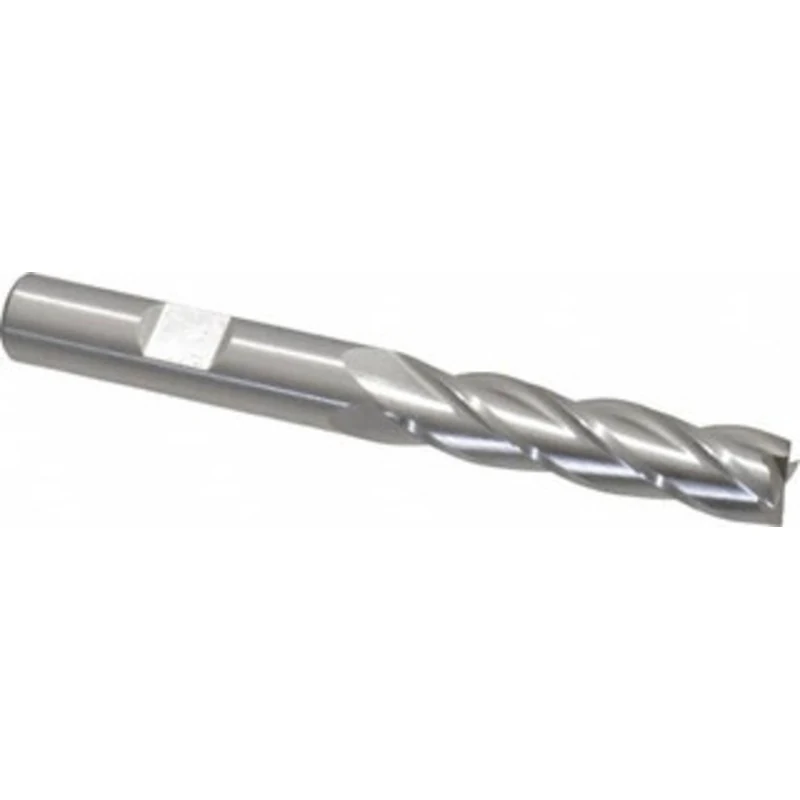

Cleveland 3/8, 1-1/2 LOC, 3/8 Shank Diam, 3-1/4 OAL, 4 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series HGC-4C C42857 – 87437935

Cleveland 3/8″, 1-1/2″ LOC, 3/8″ Shank Diam, 3-1/4″ OAL, 4 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series HGC-4C

Manufacturer Part #: C42857

S/N: 87437935

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3750
Mill Diameter (Inch)
3/8
Number Of Flutes
4
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
1.5000
Length of Cut (Inch)
1-1/2
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Inch)
3-1/4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material
High Temperature Alloy, Stainless Steel, Steel
Primary Workpiece Material Code
M, P, S
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical, Weldon Flat
Material Grade
M42
Length Type
Long
Length Of Cut Range (Decimal Inch)
1.5000 – 2.0000
Series
HGC-4C
