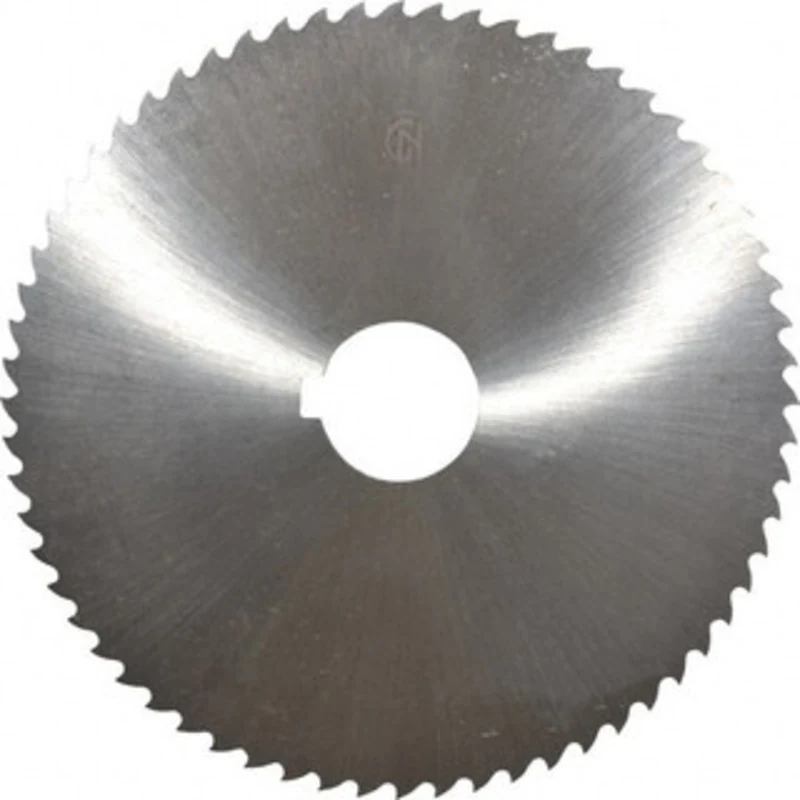

Controx-Neuhauser 5 x 1/16, 1 Arbor, 64-Tooth Cobalt Slitting & Slotting Saw Uncoated, RH Cut, Straight Teeth, Concave Ground, Contains Keyway 240554 – 63999239

Controx-Neuhauser 5 x 1/16″, 1″ Arbor, 64-Tooth Cobalt Slitting & Slotting Saw Uncoated, RH Cut, Straight Teeth, Concave Ground, Contains Keyway

Manufacturer Part #: 240554

S/N: 63999239

UNSPSC: 23241629

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Connection Type
Arbor
Number Of Teeth
64
Saw Material
Cobalt
Arbor Hole Diameter (Inch)
1
Arbor Hole Diameter
1in
Arbor Hole Diameter (Decimal Inch)
1.0000
Blade Diameter (Decimal Inch)
5.0000
Blade Diameter (Inch)
5
Blade Thickness (Decimal Inch)
0.0625
Blade Thickness (Inch)
1/16
Tooth Configuration
Straight
Rake Angle
15
Keyway Width
0.025 in
Features
Concave Ground, Contains Keyway
Cutting Direction
Right Hand
Material Grade
M35
Coating/Finish
Bright/Uncoated
