Flexbar Extra-Large Visorguard Lexan Shields – 13047

FLEXBAR VISORGUARD UNIVERSAL 13047

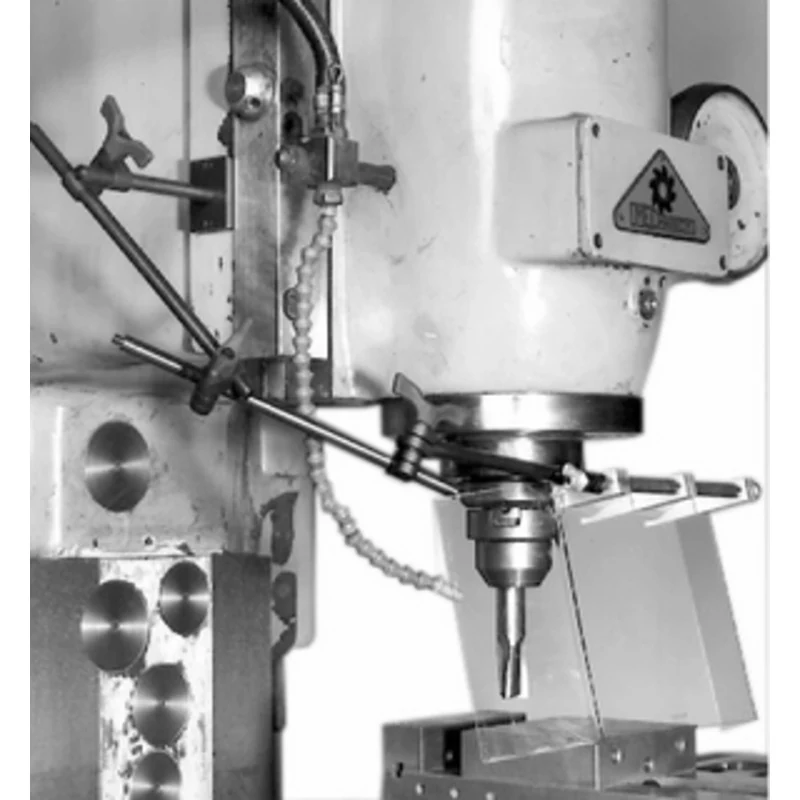

Fully Adjustable Long Reach Guard (Lexan)For Milling Machines and Unguarded Machines Including C.N.C.’s, Multi-spindles, Bandsaws, etc.

Flip up to change workpiece or tool … no loss in productivity!

Unique universal positioning design is fully adjustable. Visorguard shield is mounted and supported by a series of heavy duty arms and swivel clamps thus allowing the operator to “custom fit” each guard as to overall length, angle and position of shield. Wing-shaped Visorguard shield protects workers at adjacent machines.

LONG REACH FROM HEADSTOCK MOUNTING PLATE/POSTIS ADJUSTABLE TO 36″

Visorguard Universal consists of:

• Mounting plate with 4″ x 1/2″ post – just drill and tap into headstock … supplied with four cap screws
• 2 each 15″ x 1/2″ arms (24″ arms available upon request – phone or fax).
• 3 each 1/2″ x 1/2″ heavy duty swivel clamps with extra-large wing style locking knob
• 16″ x 8″ high Lexan Visorguard shield assembly with 6″ attachment post & coupling

Model No. 13047, Visorguard Universal
