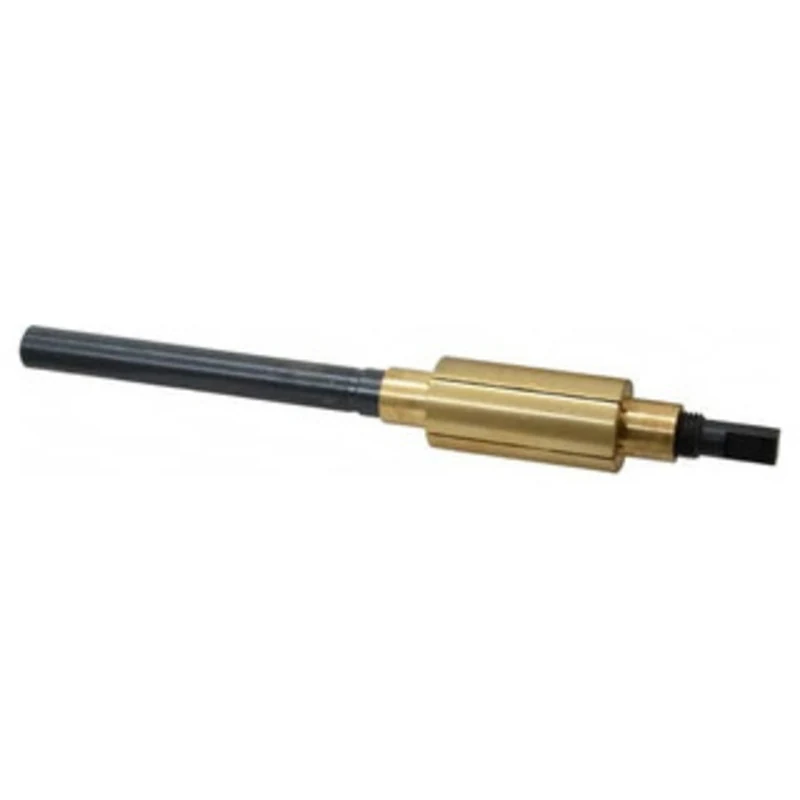

Flexolap, Barrel/Through-Hole Lap, 1 Diameter – 87-743-1

Type

Barrel/Through-Hole Lap

Diameter

1″

Lap Length

7.25″

Barrel Length

3.00″

Arbor Dia

0.500″

Flexolap, Barrel/Through-Hole Lap
1″ Diameter

Made in USA
1 x 7-1/4″ Cylinder Through-Hole Lap
15% Max Expansion, 3″ Barrel Length, 1/2″ Arbor Diam, Eccentric Slot

Features:

• Instantly and accurately adjustable for fast cutting and polishing.
• The longer cylindrical lapping surface and easy adjustment insure greater precision and longer life.
• The brass cylinder, in either the barrel or blind-hole type, is made with a series of longitudinal slots milled “off-center” to permit sensitive expansion up to 15% by simply turning the adjusting screw.
• This construction will enable you to lap rounder, straighter holes plus save valuable time.

Specifications:

Lap Type
Barrel/Through-Hole Lap

Lap Diameter (Inch)
1

Slot Type
Eccentric

Lap Length (Inch)
7-1/4

Lap Length (Decimal Inch)
7.25

Maximum Expansion (Percentage)
15

Barrel Length (Decimal Inch)
3.00

Arbor Diameter (Decimal Inch)
0.500

See all Flexolaps, Made in USA
