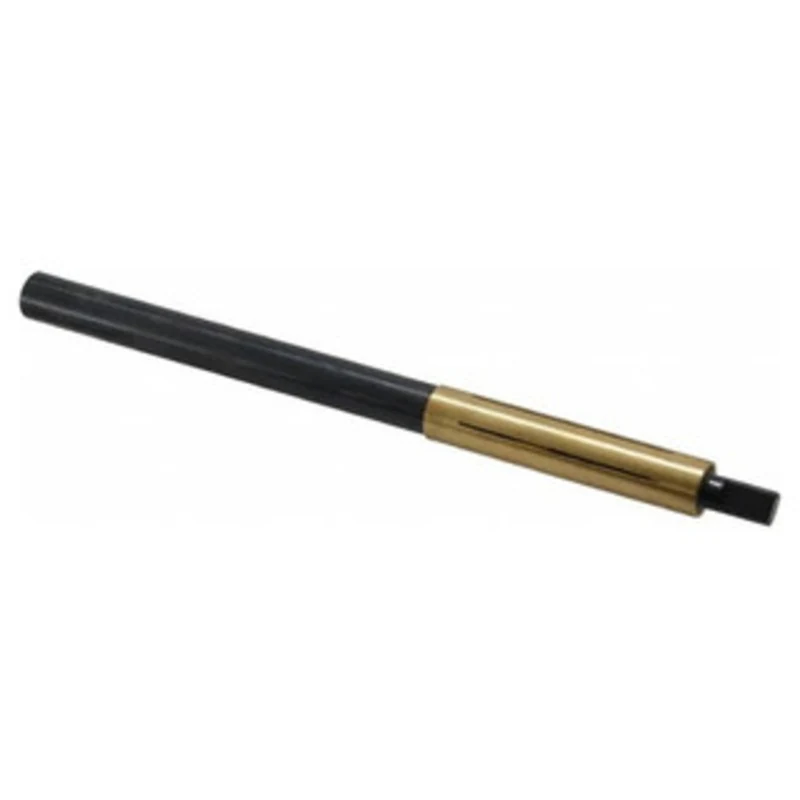

Flexolap, Barrel/Through-Hole Lap, 15/32 Diameter – 87-727-4

Type

Barrel/Through-Hole Lap

Diameter

15/32″

Lap Length

6.25″

Barrel Length

2.25″

Arbor Dia

0.425″

Flexolap, Barrel/Through-Hole Lap
15/32″ Diameter

Made in USA
15/32 x 6-1/4″ Through-Hole Lap
15% Max Expansion, 2-1/4″ Barrel Length, 0.425″ Arbor Diam, Eccentric Slot

Features:

• Instantly and accurately adjustable for fast cutting and polishing.
• The longer cylindrical lapping surface and easy adjustment insure greater precision and longer life.
• The brass cylinder, in either the barrel or blind-hole type, is made with a series of longitudinal slots milled “off-center” to permit sensitive expansion up to 15% by simply turning the adjusting screw.
• This construction will enable you to lap rounder, straighter holes plus save valuable time.

Specifications:

Lap Type
Barrel/Through-Hole Lap

Lap Diameter (Inch)
15/32

Slot Type
Eccentric

Lap Length (Inch)
6-1/4

Lap Length (Decimal Inch)
6.25

Maximum Expansion (Percentage)
15

Barrel Length (Inch)
2-1/4

Barrel Length (Decimal Inch)
2.25

Arbor Diameter (Decimal Inch)
0.425
