Flexolap, Blind Hole Lap, 3/4 Diameter – 87-738-1

Type

Blind Hole Lap

Diameter

3/4″

Lap Length

6.25″

Barrel Length

2.00″

Arbor Dia

0.500″

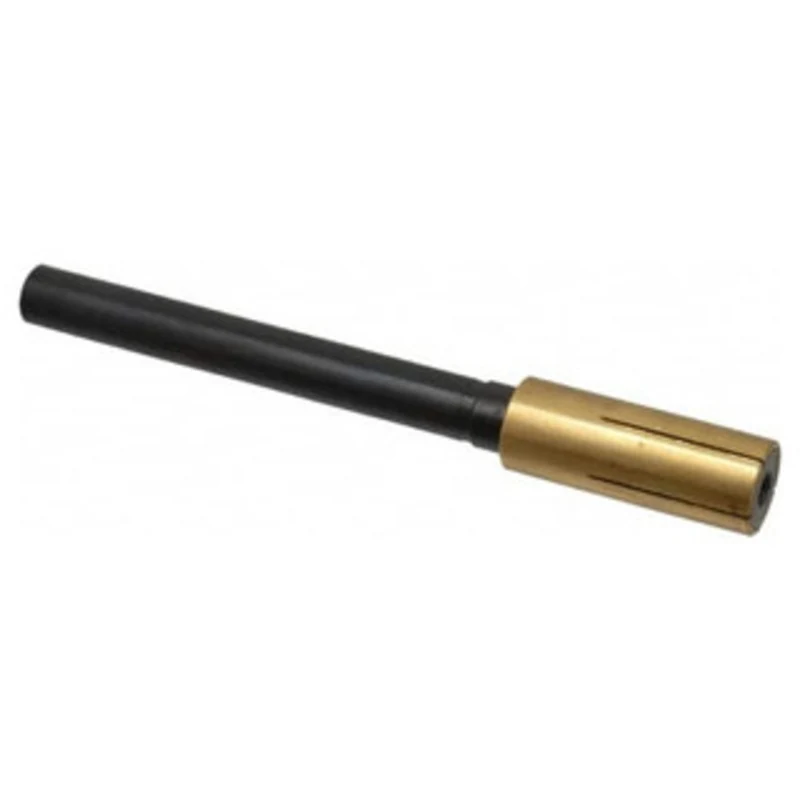

Flexolap, Blind Hole Lap, 3/4″ Diameter

Made in USA
3/4″ Diam Blind Hole Lap
6-1/4″ Long, 2″ Barrel Length, 15 Percent Max Expansion

Features:

• Instantly and accurately adjustable for fast cutting and polishing.
• The longer cylindrical lapping surface and easy adjustment insure greater precision and longer life.
• The brass cylinder, in either the barrel or blind-hole type, is made with a series of longitudinal slots milled “off-center” to permit sensitive expansion up to 15% by simply turning the adjusting screw.
• This construction will enable you to lap rounder, straighter holes plus save valuable time.

Specifications:

Lap Type
Blind Hole Lap

Lap Diameter (Inch)
3/4

Slot Type
Eccentric

Lap Length (Inch)
6-1/4

Lap Length (Decimal Inch)
6.25

Maximum Expansion (Percentage)
15

Barrel Length (Decimal Inch)
2.00

Arbor Diameter (Decimal Inch)
0.500
