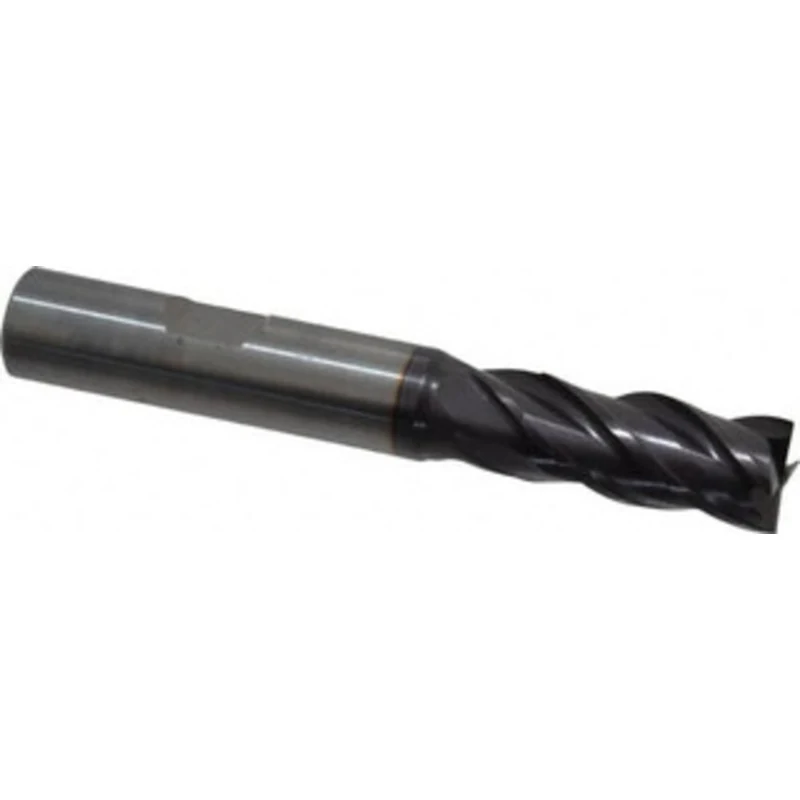

Guhring 12mm, 26mm LOC, 12mm Shank Diam, 83mm OAL, 4 Flute, Solid Carbide Square End Mill Single End, FIREX Finish, Spiral Flute, 35/38 Variable Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3732 9037320120000 – 89478200

Guhring 12mm, 26mm LOC, 12mm Shank Diam, 83mm OAL, 4 Flute, Solid Carbide Square End Mill Single End, FIREX Finish, Spiral Flute, 35/38 Variable Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3732

Manufacturer Part #: 9037320120000

S/N: 89478200

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.4720
Mill Diameter (mm)
12.00
Number Of Flutes
4
Length of Cut (mm)
26.00
Single Or Double End
Single
End Mill Material
Solid Carbide
Coating/Finish
FIREX
Centercutting
Yes
Flute Direction
Right Hand
Variable Index
No
Variable Helix
Yes
Cutting Direction
Right Hand
Overall Length (mm)
83.00
Coolant Through
No
Helix Angle
35, 38
Chipbreaker
No
Length Of Cut (Decimal Inch – 4 Decimals)
1.0240
Length Type
Regular
Flute Type
Spiral
Extended Reach
No
Shank Type
Weldon Flat
Shank Diameter (Decimal Inch)
0.4724
Shank Diameter (mm)
12.00
Neck Diameter (mm)
11.50
Reach Length (mm)
36.00
Minimum Helix Angle
35
Maximum Helix Angle
38
Mill Diameter Tolerance
h10
Shank Diameter Tolerance
h6
Primary Workpiece Material
Cast Iron, Steel
Primary Workpiece Material Code
K, P
UNSPSC Code
27112803
Secondary Workpiece Material
Hard Material, Stainless Steel
Secondary Workpiece Material Code
H, M, S
Material Grade
Proprietary
Series
3732
