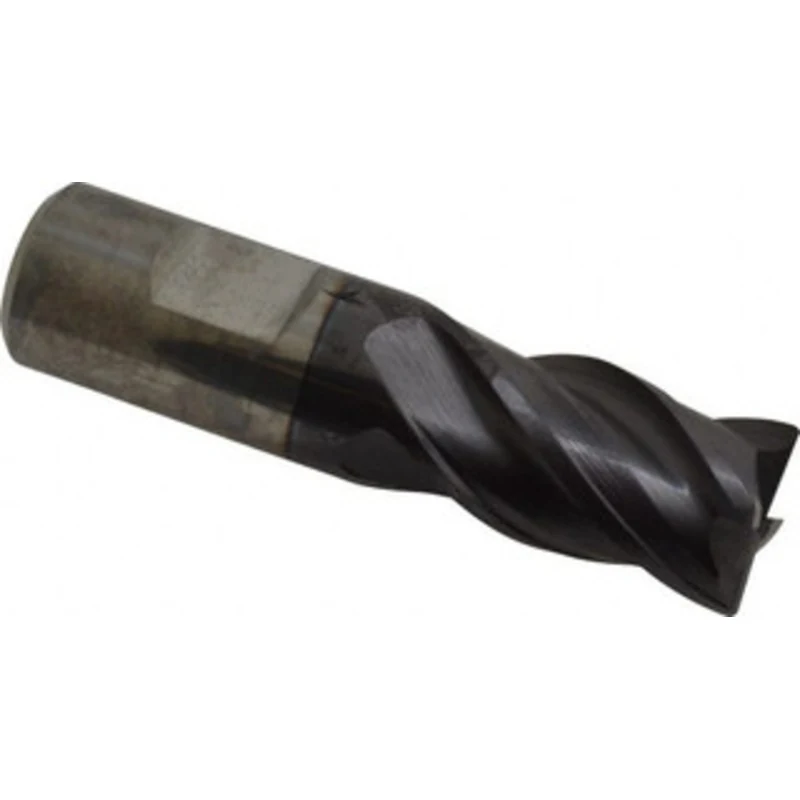

Guhring 3/4, 1 LOC, 3/4 Shank Diam, 3 OAL, 4 Flute, Solid Carbide Square End Mill Single End, FIREX Finish, Spiral Flute, 35/38 Variable Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3099 9030990190500 – 89477392

Guhring 3/4″, 1″ LOC, 3/4″ Shank Diam, 3″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, FIREX Finish, Spiral Flute, 35/38 Variable Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3099

Manufacturer Part #: 9030990190500

S/N: 89477392

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Inch)
3/4
Mill Diameter (Decimal Inch)
0.7500
Number Of Flutes
4
Length of Cut (Inch)
1
Single Or Double End
Single
End Mill Material
Solid Carbide
Coating/Finish
FIREX
Overall Length (Inch)
3
Centercutting
Yes
Flute Direction
Right Hand
Variable Index
No
Variable Helix
Yes
Cutting Direction
Right Hand
Coolant Through
No
Helix Angle
35, 38
Overall Length (Decimal Inch)
3.0000
Chipbreaker
No
Length Of Cut (Decimal Inch – 4 Decimals)
1.0000
Length Type
Stub
Flute Type
Spiral
Extended Reach
No
Shank Type
Weldon Flat
Shank Diameter (Decimal Inch)
0.7500
Shank Diameter (Inch)
3/4
Minimum Helix Angle
35
Maximum Helix Angle
38
Mill Diameter Tolerance
h10
Shank Diameter Tolerance
h6
Primary Workpiece Material
Cast Iron, Steel
Primary Workpiece Material Code
K, P
UNSPSC Code
27112803
Secondary Workpiece Material
Hard Material, Stainless Steel
Secondary Workpiece Material Code
H, M, S
Material Grade
Proprietary
Series
3099
