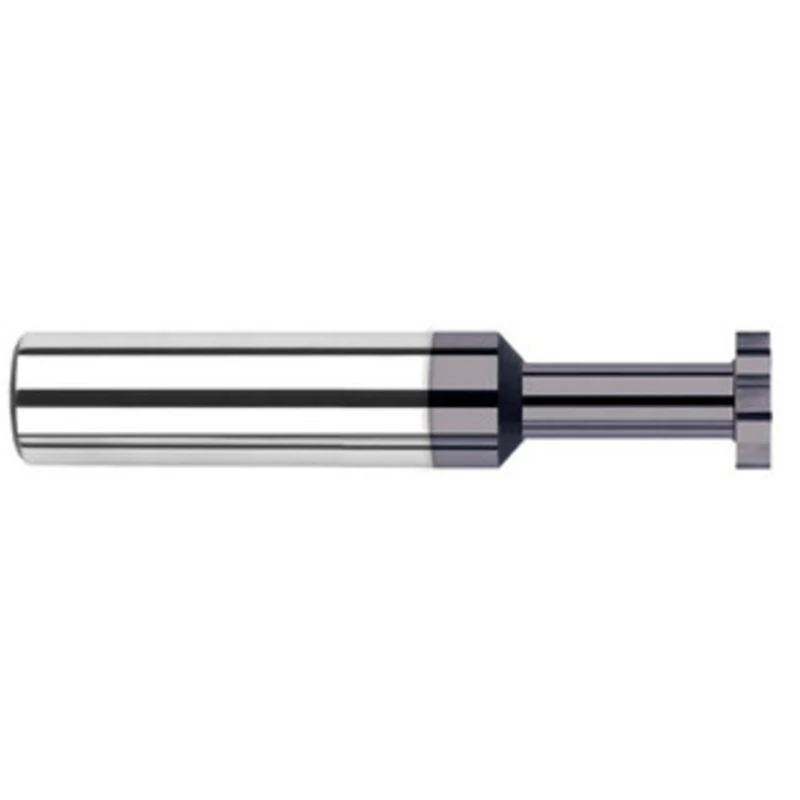

Harvey Tool 1/8 Cut Diam, 1/32 Cut Width, 1/8 Shank, Straight-Tooth Woodruff Keyseat Cutter Solid Carbide, AlTiN Finish, 1-1/2 OAL, 6 Teeth 22131-C3 – 63112700

Harvey Tool 1/8″ Cut Diam, 1/32″ Cut Width, 1/8″ Shank, Straight-Tooth Woodruff Keyseat Cutter Solid Carbide, AlTiN Finish, 1-1/2″ OAL, 6 Teeth

Manufacturer Part #: 22131-C3

S/N: 63112700

UNSPSC: 23241631

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Connection Type
Shank
Cutter Material
Solid Carbide
Cutter Diameter (Inch)
1/8
Cutter Diameter (Decimal Inch)
0.1250
Tooth Configuration
Straight
Cutting Width (Inch)
1/32
Cutting Width (Decimal Inch)
0.0310
Weldon Flat
No
Neck Diameter (Decimal Inch)
0.0620
Neck Length (Decimal Inch)
0.1870
Shank Diameter (Inch)
1/8
Shank Diameter (Decimal Inch)
0.1250
Overall Length (Inch)
1-1/2
Overall Length (Decimal Inch)
1.5000
Primary Workpiece Material
Steel, Stainless Steel, Cast Iron
Primary Workpiece Material Code
P, M, K
Secondary Workpiece Material
Non-Ferrous Metal, Superalloys & Titanium, Hard Material
Secondary Workpiece Material Code
N, S, H
Coating/Finish
AlTiN
Number Of Teeth
6
UNSPSC Code
23241631
