Overall Height
5″
Overall Width
8-1/4″
Weight
25 lbs.

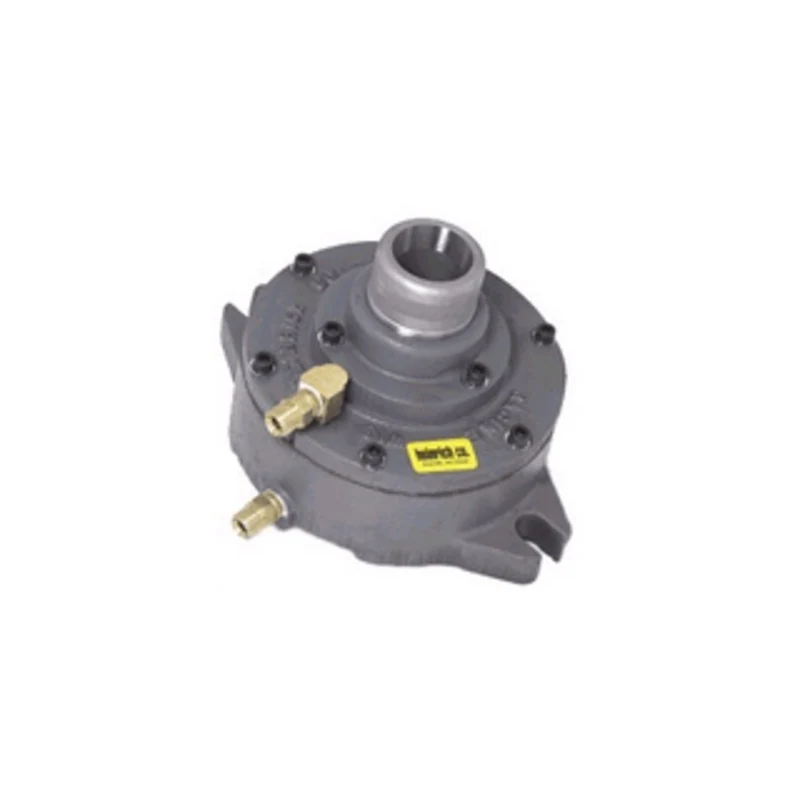

Heinrich 5C Air Collet Fixture
- Uses Standard 5-C type collets up to 1-1/8″ diameter to hold round, hexagonal and square workpieces. Can also be used with step chuck collets and expanding chucks for internal gripping.
- Double acting, piston type air cylinder develops holding power 18 times air line pressure
- Maximum operating pressure: 120 psi
- Has 1-7/64″ hole completely through unit for bar feeds or dropping finished parts
- Two lugs provided for mounting
- Knurled collet holder is hardened and precision ground
- Base of fixture is relieved for chip removal and coolant flow
Operates with:
No. 45-12CI Four-Way Foot Treadle, (Included) or
No. 45-18 Four-Way Hand Valve and three No. 34-14 Air Hoses. (Not Included)
5-C Collets are not included.
| Maximum operating pressure |
120 psi |
| Maximum operating pressure |
120 psi |
