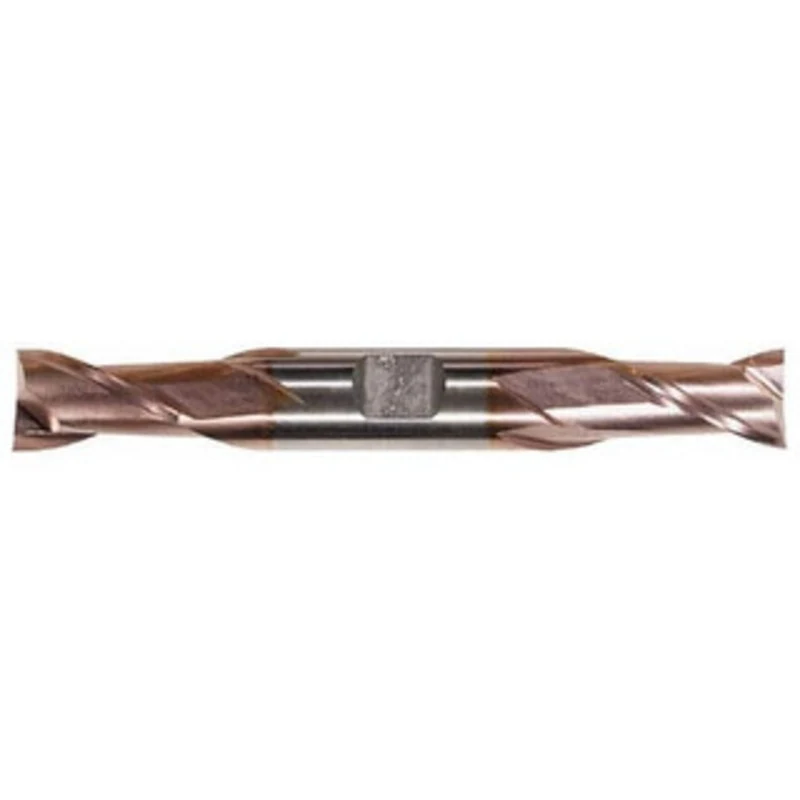

Hertel 1/2, 13/16 LOC, 1/2 Shank Diam, 4-1/8 OAL, 2 Flute, High Speed Steel Square End Mill Double End, TiCN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute EF99921326 – 87617213

Hertel 1/2″, 13/16″ LOC, 1/2″ Shank Diam, 4-1/8″ OAL, 2 Flute, High Speed Steel Square End Mill Double End, TiCN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: EF99921326

S/N: 87617213

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
2
End Mill Material
High Speed Steel
Length of Cut (Decimal Inch)
0.8125
Length of Cut (Inch)
13/16
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Inch)
4-1/8
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Length Of Cut Range (Decimal Inch)
0.8000 – 1.0000
