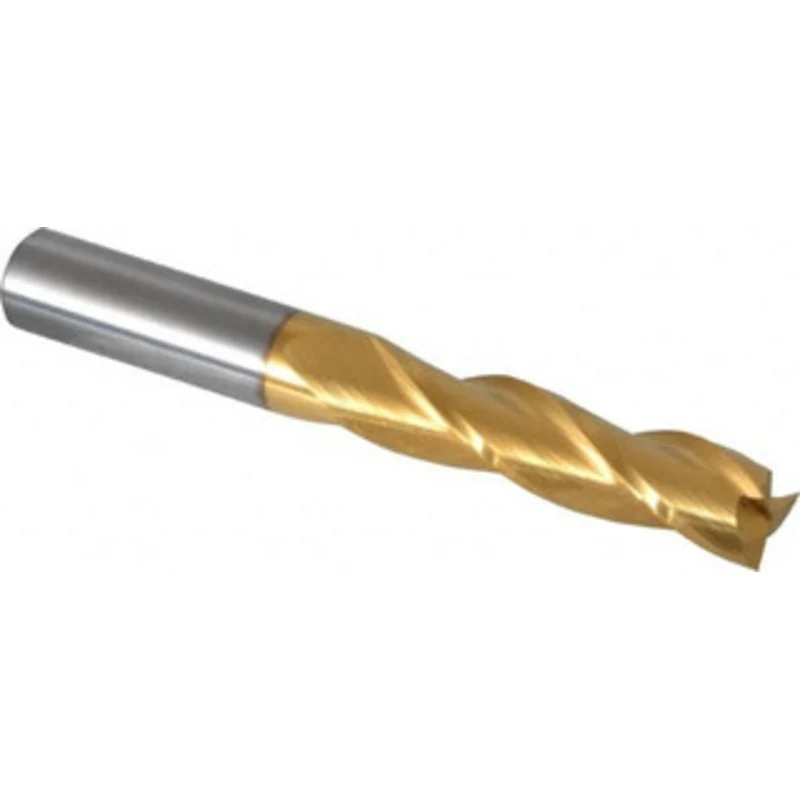

Hertel 1/2, 2 LOC, 1/2 Shank Diam, 4 OAL, 3 Flute, Solid Carbide Square End Mill Single End, TiN Finish, 30 Helix, Centercutting, Right Hand Cut 750614 – 89312029

Hertel 1/2″, 2″ LOC, 1/2″ Shank Diam, 4″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, TiN Finish, 30 Helix, Centercutting, Right Hand Cut

Manufacturer Part #: 750614

S/N: 89312029

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
2
Length of Cut (Inch)
2
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5
Overall Length (Decimal Inch)
4
Overall Length (Inch)
4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Coating/Finish
Titanium Nitride
Variable Helix
No
Variable Index
No
Chipbreaker
No
Material Grade
Micrograin
Length Of Cut Range (Decimal Inch)
2.0000+
UNSPSC Code
27112803
