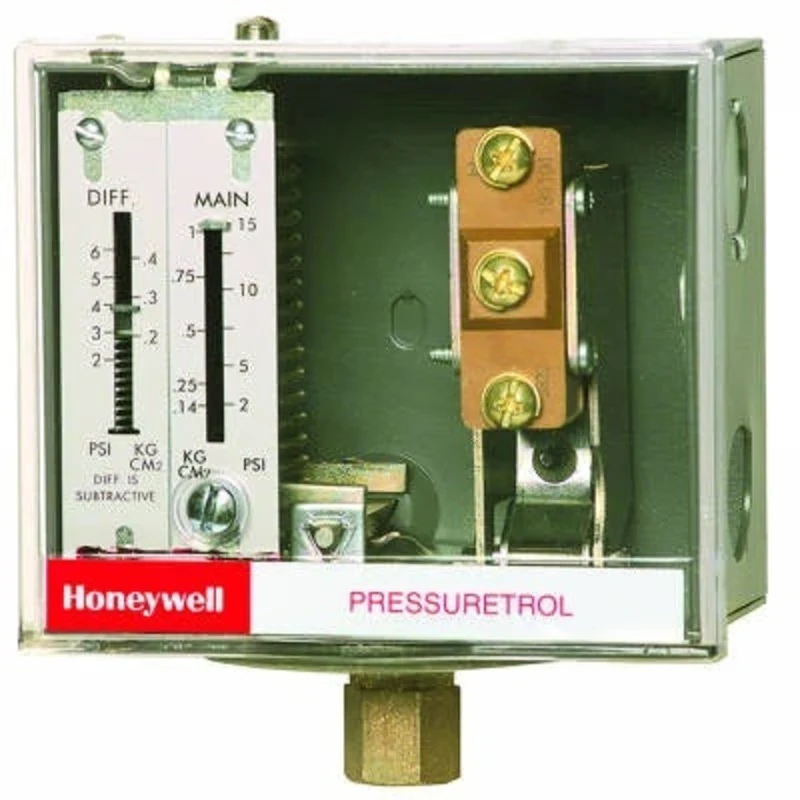

Provide operating control with automatic limit protection for pressure systems up to 300 psi (2068 kPa).
Application: Provide control of steam, air, non-combustible gases or non-corrosive fluidsDimensions (in.): 4 27/32 in. high x 4 1/2 in. wide x 3 1/4 in. deepDimensions (mm): 123 mm high x 114 mm wide x 83 mm deepMounting: 1/4 in. NPT internal thread or surface mount through back of caseApprovals, Underwriters Laboratories Inc.: Listed: File No. MP466, Guide No. MBPRApprovals, Canadian Standards Association: Certified: File No. LR1620, Guide No. 400-E-OElectrical Connections: Screw terminalsContact Ratings: 120 Vac Switch Contact– 8.0 AFL, 48.0 ALR, 10.0 A resistive; 240 Vac Switch Contact– 5.1 AFL, 30.6 ALR, 5.0 A resistiveOperating Temperature Range (F): -35 F to +150 FOperating Temperature Range (C): -37 C to +66 CApprovals, Swiss RE: AcceptableSensor Element: Stainless Steel diaphragm
Differential Type: SubtractiveSwitch Operation: Auto recycleSwitching Action: SPDT snap action, make R-W, break R-B on pressure risePipe Connection: Main or High Pressure–1/4 in. NPT internal thread
L404F1060 |
L404F1078 |
L404F1102 |
L404F1094 |
|
Operating Range (psi):2 to 15 psi; 25 psi – Maximum Sustained Operating Range (kPa):14 to 103 kPa; 172 kPa – Maximum Sustained Differential Pressure Range (psi):2 to 6 psi Differential Pressure Range (kPa):14 to 41 kPa |
Operating Range (psi): 5 to 50 psi; 85 psi – Maximum Sustained Operating Range (kPa): 35 to 345 kPa; 586 kPa – Maximum Sustained Differential Pressure Range (psi): 6 to 14 psi Differential Pressure Range (kPa): 41 to 97 kPa |
Operating Range (psi): 10 to 150 psi; 225 psi – Maximum Sustained Operating Range (kPa): 69 to 1034 kPa; 1151 kPa – Maximum Sustained Differential Pressure Range (psi): 10 to 22 psi Differential Pressure Range (kPa): 60 to 152 kPa |
Operating Range (psi): 20 to 300 psi; 350 psi – Maximum Sustained Operating Range (kPa): 138 to 2068 kPa; 2413 kPa – Maximum Sustained Differential Pressure Range (psi): 20 to 50 psi Differential Pressure Range (kPa): 138 to 345 kPa |
