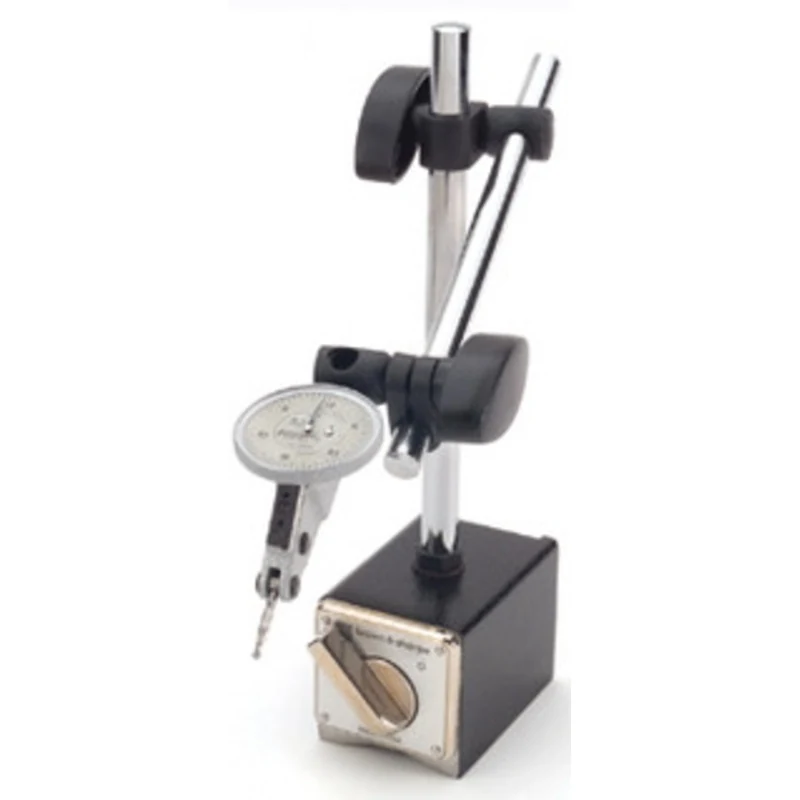

Interapid Dial Test Indicator 312B-1 & Magnetic Base Package
Interapid Dial Test Indicator
Interapid Horizontal Swiss Test Horizontal Indicator 312B-1
74.111370
Graduation:.0005″
Capacity:.060″
Point Length: 11/16″
Dial Diameter: 1-1/2″
Interapid, international acclaimed as the finest test indicators, are made in Switzerland to traditional precision and perfection.
- Inclined dial for easier reading.
- Exceptional sensitivity and responsiveness.
- Very light measuring pressure.
- Ball bearing contact point pivot and jewelled mechanism.
- Automatic reversing contact point, swivelling through 210, vertical models 190.
- Revolution counter.
- One piece, solid case for maximum rigidity.
- Universal swivel stem 5/32″ diameter and two dovetails (vertical models one dovetail) for convenient mounting.
- Includes.080″ carbide contact point, metric models 2mm, chrome plated.
- Complete with contact point wrench in fitted case.
Magnetic Base (Imported)
- 150 pounds of pulling power.
- Back rails and bottom surface are surface ground square and paralle to within.001″
- Base can be mounted vertically as well as horizontally.
- With fine adjustment.
