Capacity
.016″
Dial Diameter
1-1/2″
Graduation
.0001″
Point Length
11/16″

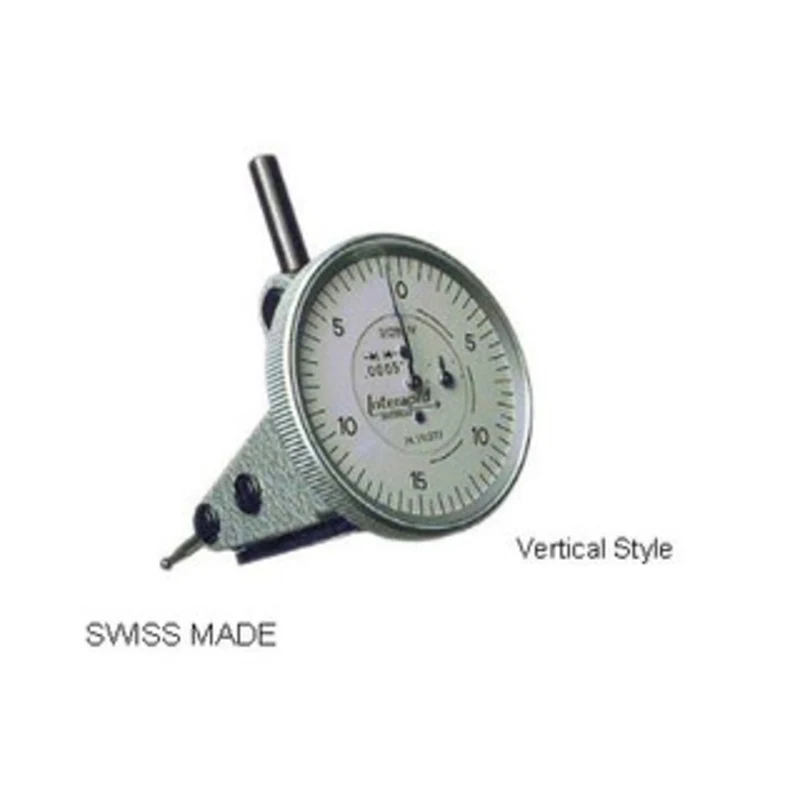

Interapid Vertical Dial Test Indicator – 312B-3V
- Inclined dial for easier reading
- Exceptional sensitivity and responsiveness
- Very light measuring pressure
- Ball bearing contact point pivot and jewelled mechanism
- Automatic reversing contact point, swivelling through 210 degrees, vertical models 190 degrees
- Revolution counter
- One piece, solid case for maximum rigidity
- Universal swivel stem 5/32″ diameter and two dovetails (vertical models one dovetail) for convenient mounting
- Includes.080″ carbide contact point, metric models 2mm, chrome plated
- Complete with contact point wrench in fitted case
