Model
11N
Range
0 – 3/8″
Mount
JT2
Key
K32

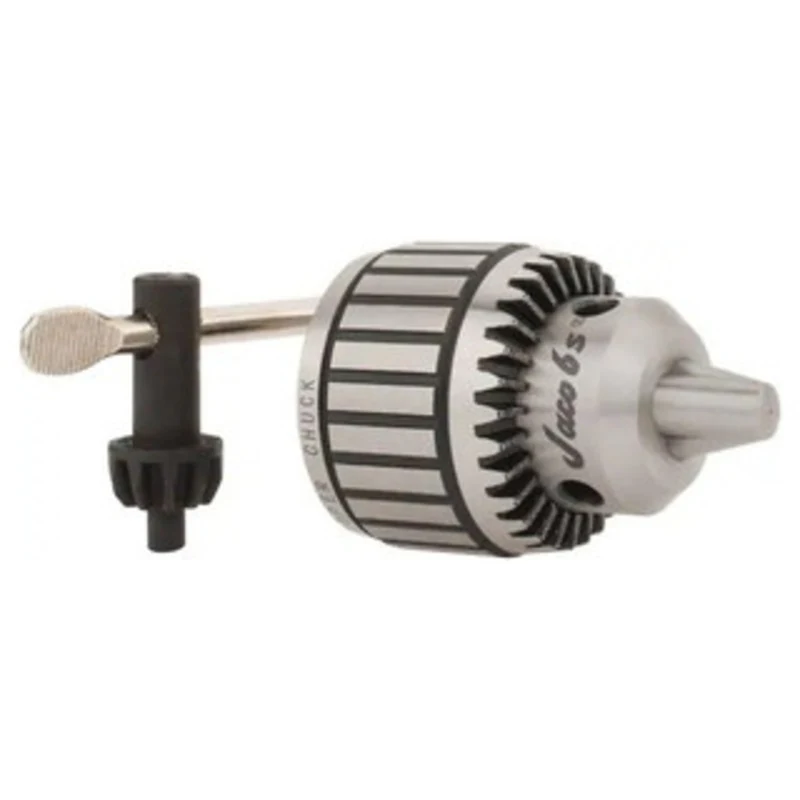

Jacobs Super Chuck Keyed Ball Bearing Drill Chuck 11N, 0 – 3/8″ Range, JT2 Mount
JT2, 0 to 3/8″ Capacity, Tapered Mount Drill Chuck
Keyed, 1-15/16″ Sleeve Diam, 2-1/4″ Open Length
Catalog Number: 30215
Features:
- Specially engineered for heavy duty close tolerance production drilling.
- Ideal for use on jig borers, milling machines, lathes and radial drill presses.
- Ball bearing construction maximizes gripping force and drilling accuracy.
- Jaws are centerground for absolute straightness and alignment.
- All working components are hardened for maximum wear resistance
- Tapered mount drill chucks have an internal Jacobs Taper (JT) that is press-fit onto a corresponding JT arbor (shank) or spindle.
- Keyed chucks are engineered to either loosen or tighten the hold on a tool by using a key. Keyed chucks offer the advantage of applying additional torque on the bit when slippage is a concern during heavy-duty applications.
- Ball bearings are designed to reduce friction in the tightening mechanism and provide a better grip on the drill. They are used for heavy-duty machining and require a key for tightening or loosening.
- Ball Bearing Construction Maximizes Gripping Force and Drilling Accuracy.
- Jaws Center-Ground for Straightness and Alignment.
- One-Piece Sleeve Eliminates Crack Between Driving Teeth Often Found in Other Designs.
- Through-Hardened Sleeve Teeth Plus Hardened Nose and Keyholes Provide Outstanding Wear Resistance.
- Fluted Sleeve Standard.
- Each Chuck 100% Inspected for Performance and Precision.
- T.I.R. 0.003″ Maximum at Half Capacity.
Specifications:
UPC
095456302150
Set
No
Maximum Capacity
0.375 in
Minimum Capacity
0.040 in
Mount
2JT
Sleeve Outer Diameter
1.93 in
Model Number
11N
Manufacturer Part #
30215
11N
Maximum Drill Chuck Capacity (mm)
9.53
Maximum Drill Chuck Capacity (Inch)
3/8
Maximum Drill Chuck Capacity (Decimal Inch)
0.3750
Minimum Drill Chuck Capacity (mm)
0.00
Minimum Drill Chuck Capacity (Inch)
0
Minimum Drill Chuck Capacity (Decimal Inch)
0.0400
Mount Type
Tapered Mount
Mounting Size
JT2
Key Style
Keyed
Bearing Type
Ball Bearing
Material
Steel
Closed Length (mm)
73.03
Closed Length (Inch)
2-7/8
Open Length (mm)
57.15
Open Length (Inch)
2-1/4
Sleeve Diameter (mm)
49.21
Sleeve Diameter (Inch)
1-15/16
Key Number
K32
TIR (Decimal Inch)
0.0030
