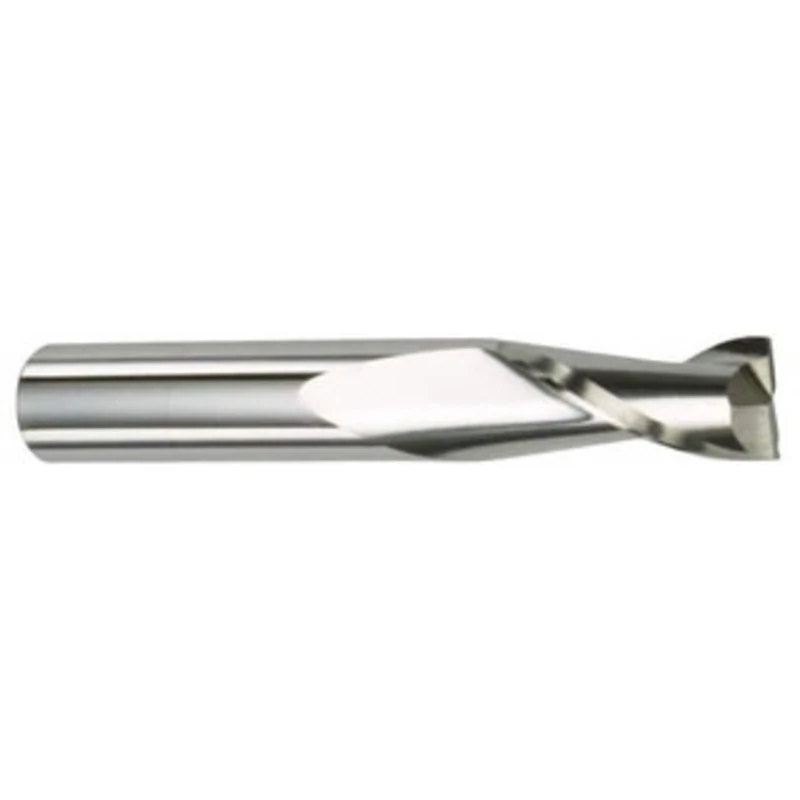

Kennametal 1/2, 5/8 LOC, 1/2 Shank Diam, 2-1/2 OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series AADF 3658904 – 71095939

Kennametal 1/2″, 5/8″ LOC, 1/2″ Shank Diam, 2-1/2″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series AADF

Manufacturer Part #: 3658904

S/N: 71095939

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Fractional Inch)
1/2
Flute Type
Spiral
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Inch)
5/8
Coating/Finish
Bright/Uncoated
Centercutting
Yes
End Type
Single
Flute Direction
Right Hand
Extended Reach
No
Shank Diameter (Inch)
1/2
Mill Diameter (Decimal Inch)
0.5000
Length of Cut (Decimal Inch)
0.6250
Shank Diameter (Decimal Inch)
0.5000
Chipbreaker
No
Variable Helix
No
Variable Index
No
Helix Angle
45
Material Grade
K600
Cutting Direction
Right Hand
Series
AADF
Shank Diameter Tolerance
+0.00000/-0.00043 in
Mill Diameter Tolerance
+0.000/-0.002 in
UNSPSC Code
27112803
