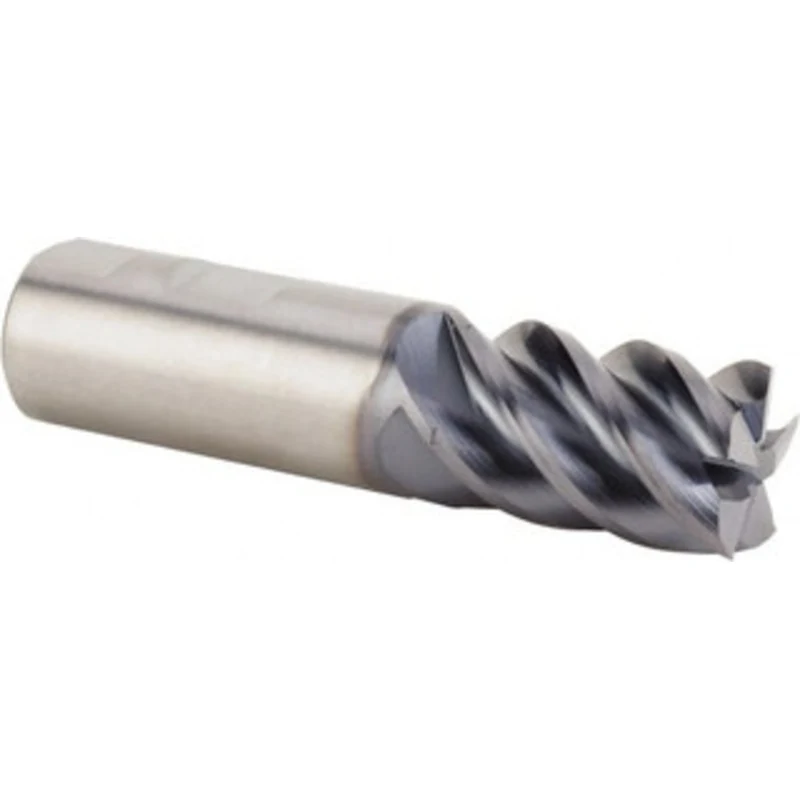

Kennametal 1/2, 5/8 LOC, 1/2 Shank Diam, 2-1/2 OAL, 5 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 47 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series HPFSS 4048645 – 46871695

Kennametal 1/2″, 5/8″ LOC, 1/2″ Shank Diam, 2-1/2″ OAL, 5 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 47 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series HPFSS

Manufacturer Part #: 4048645

S/N: 46871695

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
5
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.6250
Length of Cut (Inch)
5/8
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Inch)
2-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
47
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.6000 – 0.7000
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
+0.00000/-0.00043 in
Series
HPFSS
