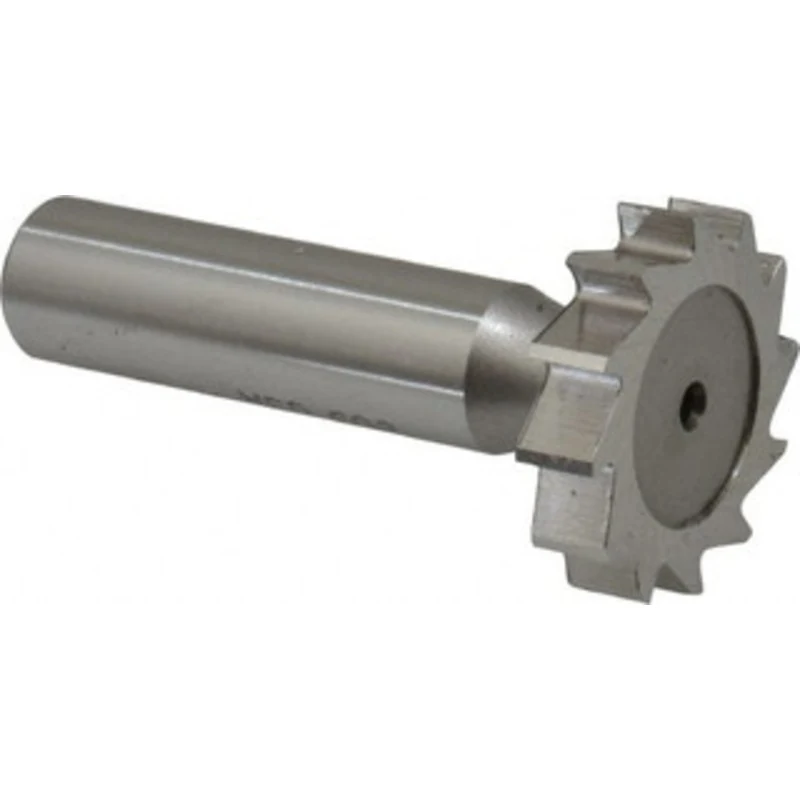

KEO ANSI 809 (Old Std # 18) 1-1/8 Cut Diam, 1/4 Cut Width, 1/2 Shank, Straight-Tooth Woodruff Keyseat Cutter High Speed Steel, Uncoated, 2-1/4 OAL, 12 Teeth 68090 – 72467939

KEO ANSI 809 (Old Std # 18) 1-1/8″ Cut Diam, 1/4″ Cut Width, 1/2″ Shank, Straight-Tooth Woodruff Keyseat Cutter High Speed Steel, Uncoated, 2-1/4″ OAL, 12 Teeth

Manufacturer Part #: 68090

S/N: 72467939

UNSPSC: 23241631

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Connection Type
Shank
Cutter Material
High Speed Steel
Cutter Diameter (Inch)
1-1/8
Cutter Diameter (Decimal Inch)
1.1250
Tooth Configuration
Straight
Cutting Width (Inch)
1/4
Cutting Width (Decimal Inch)
0.2500
Weldon Flat
No
Neck Length (Decimal Inch)
0.3750
Shank Diameter (Inch)
1/2
Overall Length (Inch)
2-1/4
American Standard Number
809
Oversized For Resharpening
No
Old Standard Number
18
Primary Workpiece Material Code
H, K, M, N, P, S
Coating/Finish
Bright/Uncoated
Number Of Teeth
12
UNSPSC Code
23241631
