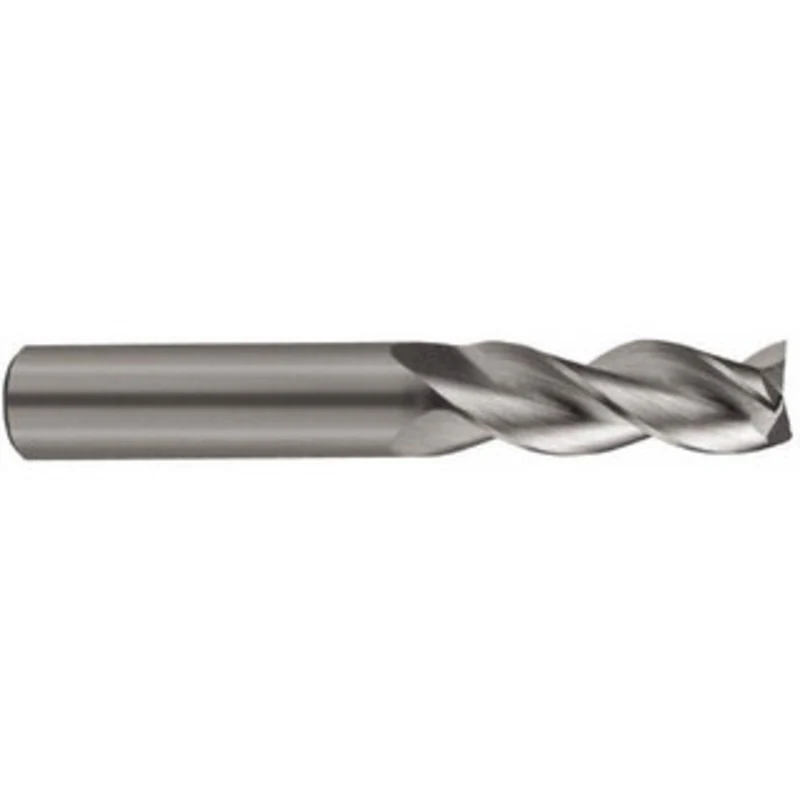

KYOCERA SGS 1, 1-1/4 LOC, 1 Shank Diam, 4 OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 38 Helix, Right Hand Cut, Right Hand Flute, Series 43 34724 – 86552569

KYOCERA SGS 1″, 1-1/4″ LOC, 1″ Shank Diam, 4″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 38 Helix, Right Hand Cut, Right Hand Flute, Series 43

Manufacturer Part #: 34724

S/N: 86552569

UNSPSC: 27112803

UPC: 691781347240

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
1.0000
Mill Diameter (Inch)
1
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.2500
Length of Cut (Inch)
1-1/4
Shank Diameter (Inch)
1
Shank Diameter (Decimal Inch)
1.0000
Overall Length (Decimal Inch)
4.0000
Overall Length (Inch)
4
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
38
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Length Type
Regular
Length Of Cut Range (Decimal Inch)
1.2500 – 1.5000
Mill Diameter Tolerance
+0.00000/-0.00051 in
Shank Diameter Tolerance
+0.00000/-0.00051 in
Series
43
