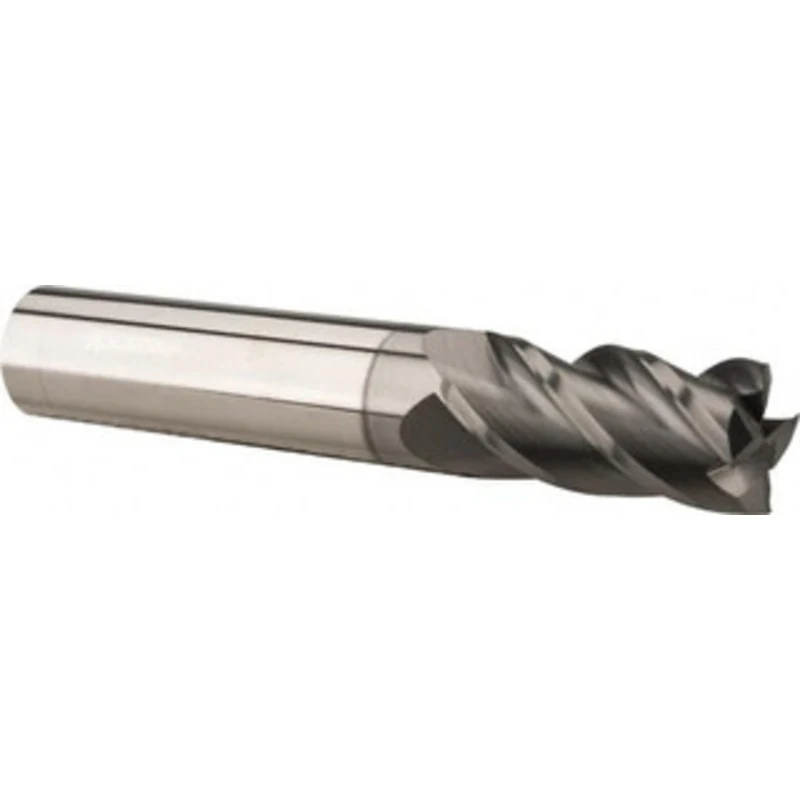

Accupro 3/16, 3/4 LOC, 3/16 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, nACRo Finish, S...
End Mills

KYOCERA SGS 1/2, 1-1/4 LOC, 1/2 Shank Diam, 3-1/4 OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, Variable Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series Z1 36598 – 92296508

Original price was: $168.30.Current price is: $50.49.

Availability: 8 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 92296508
CATEGORY: End Mills
Description

KYOCERA SGS 1/2″, 1-1/4″ LOC, 1/2″ Shank Diam, 3-1/4″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, Variable Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series Z1

Manufacturer Part #: 36598

S/N: 92296508

UNSPSC: 27112803

UPC: 691781365985

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.2500
Length of Cut (Inch)
1-1/4
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Inch)
3-1/4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Primary Workpiece Material Code
H, K, M, P, S
Variable Helix
Yes
Variable Index
Yes
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Regular
Length Of Cut Range (Decimal Inch)
1.2500 – 1.5000
Mill Diameter Tolerance
+0.0000/-0.0020 in
Shank Diameter Tolerance
+0.00000/-0.00043 in
Series
Z1
