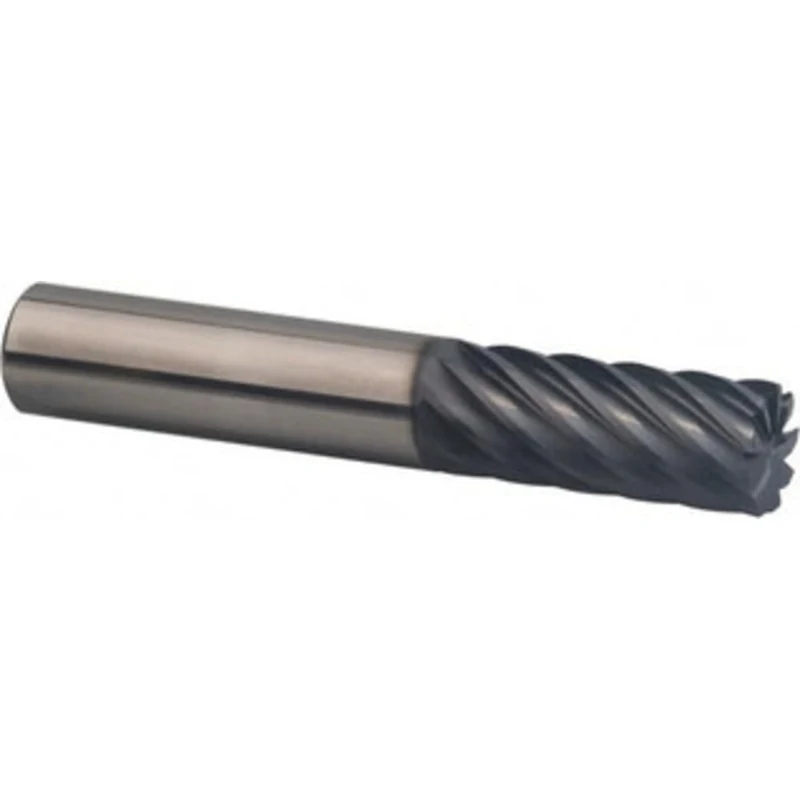

KYOCERA SGS 1/2, 1-1/4 LOC, 1/2 Shank Diam, 3 OAL, 9 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 35 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 66 36623 – 70218631

KYOCERA SGS 1/2″, 1-1/4″ LOC, 1/2″ Shank Diam, 3″ OAL, 9 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 35 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 66

Manufacturer Part #: 36623

S/N: 70218631

UNSPSC: 27112803

UPC: 691781366234

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
9
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.2500
Length of Cut (Inch)
1-1/4
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Decimal Inch)
3.0000
Overall Length (Inch)
3
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
35
Primary Workpiece Material Code
H, K, M, P, S
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Regular
Length Of Cut Range (Decimal Inch)
1.2500 – 1.5000
Mill Diameter Tolerance
+0.0000 to -0.0020 in
Shank Diameter Tolerance
h6
Series
66
