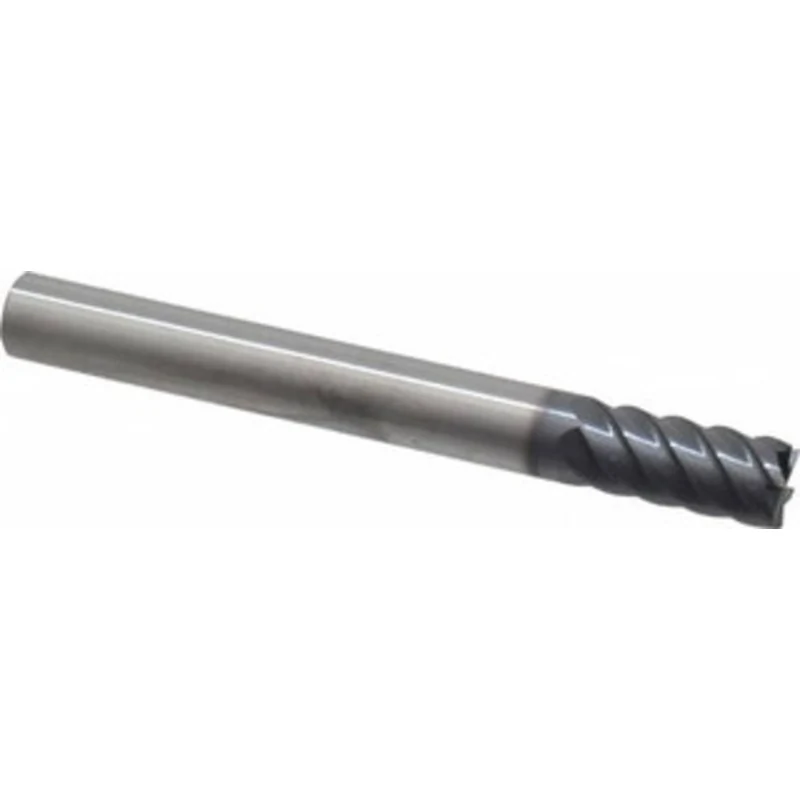

KYOCERA SGS 1/2, 1-3/32 LOC, 1/2 Shank Diam, 4-1/2 OAL, 6 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 57 36143 – 01819168

KYOCERA SGS 1/2″, 1-3/32″ LOC, 1/2″ Shank Diam, 4-1/2″ OAL, 6 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 57

Manufacturer Part #: 36143

S/N: 01819168

UNSPSC: 27112803

UPC: 691781361437

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
6
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.0938
Length of Cut (Inch)
1-3/32
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Inch)
4-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
45
Primary Workpiece Material
Hard Material
Primary Workpiece Material Code
H
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Length Type
Extra Long
Mill Diameter Tolerance
+0.0000/-0.0020 in
Shank Diameter Tolerance
+0.00000/-0.00043 in
Series
57
