KYOCERA SGS 1, 2-1/4 LOC, 1 Shank Diam, 5 OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 1L 33117 – 32142648

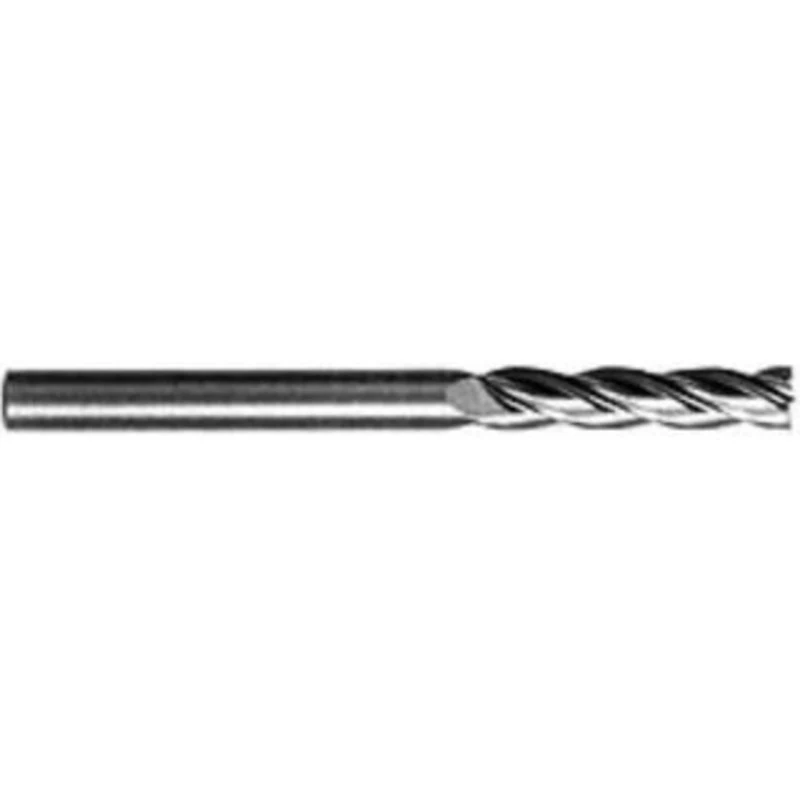

KYOCERA SGS 1″, 2-1/4″ LOC, 1″ Shank Diam, 5″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 1L

Manufacturer Part #: 33117

S/N: 32142648

UNSPSC: 27112803

UPC: 691781331171

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
1.0000
Mill Diameter (Inch)
1
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
2.2500
Length of Cut (Inch)
2-1/4
Shank Diameter (Inch)
1
Shank Diameter (Decimal Inch)
1.0000
Overall Length (Decimal Inch)
5.0000
Overall Length (Inch)
5
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material Code
H, K, M, N, P, S
Variable Helix
No
Variable Index
Yes
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Long
Length Of Cut Range (Decimal Inch)
2.0000+
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
+0.00000/-0.00051 in
Series
1L
