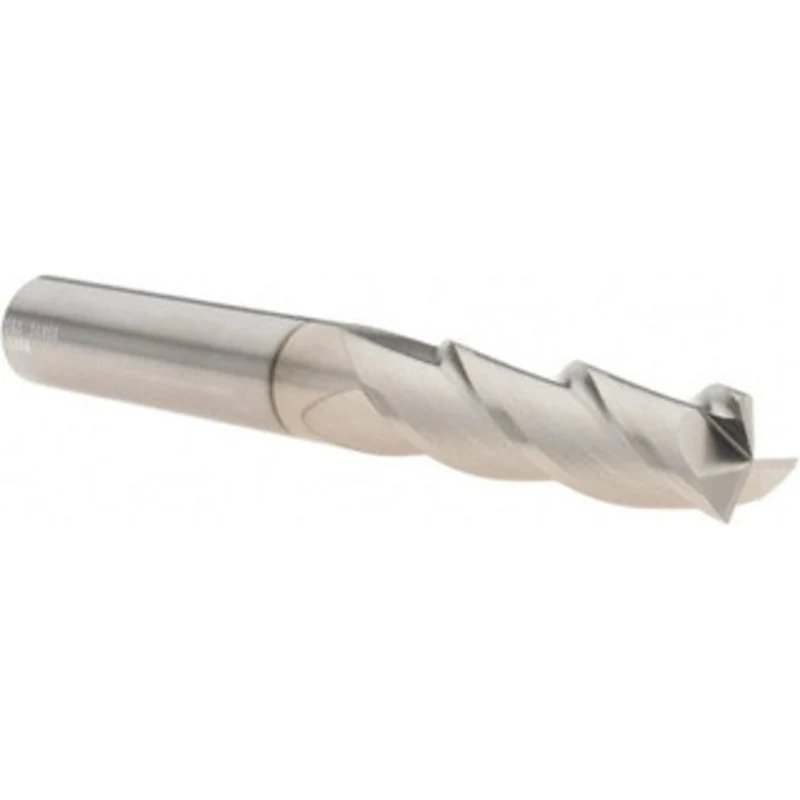

KYOCERA SGS 1/2, 1-5/8 LOC, 1/2 Shank Diam, 4 OAL, 3 Flute, Solid Carbide Square End Mill Single End, TiB2 Finish, Spiral Flute, 38 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 43 34866 – 39211263

KYOCERA SGS 1/2″, 1-5/8″ LOC, 1/2″ Shank Diam, 4″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, TiB2 Finish, Spiral Flute, 38 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 43

Manufacturer Part #: 34866

S/N: 39211263

UNSPSC: 27112803

UPC: 691781348667

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.6250
Length of Cut (Inch)
1-5/8
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Decimal Inch)
4.0000
Overall Length (Inch)
4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
38
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Length Type
Regular
Length Of Cut Range (Decimal Inch)
1.5000 – 2.0000
Mill Diameter Tolerance
+0.00000 to -0.00043 in
Shank Diameter Tolerance
h6
Series
43
