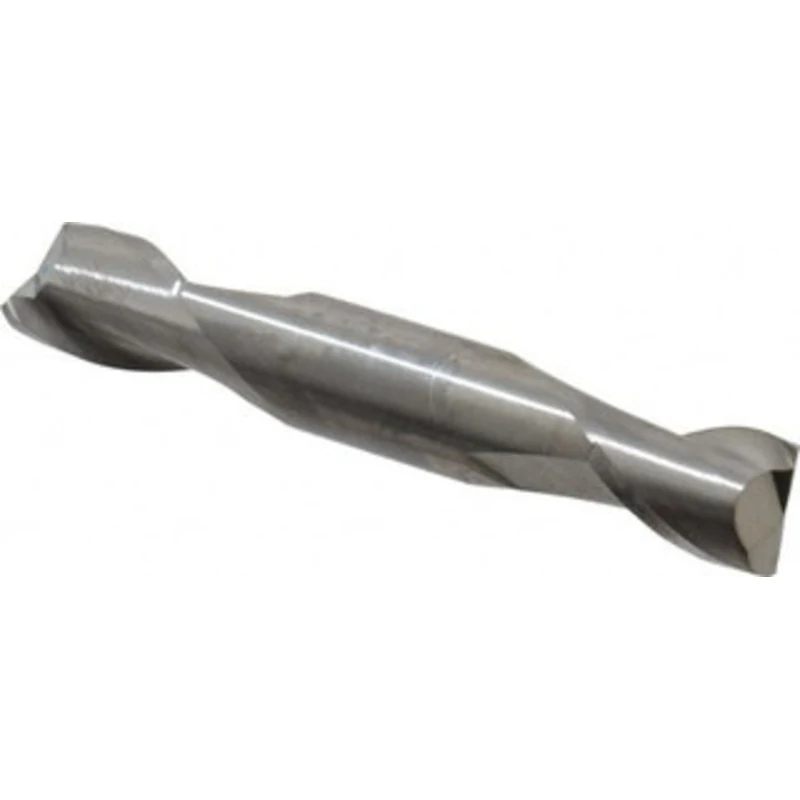

KYOCERA SGS 1/2, 5/8 LOC, 1/2 Shank Diam, 3 OAL, 2 Flute, Solid Carbide Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 15 31539 – 32158321

KYOCERA SGS 1/2″, 5/8″ LOC, 1/2″ Shank Diam, 3″ OAL, 2 Flute, Solid Carbide Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 15

Manufacturer Part #: 31539

S/N: 32158321

UNSPSC: 27112803

UPC: 691781315393

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.625
Length of Cut (Inch)
5/8
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5
Overall Length (Decimal Inch)
3
Overall Length (Inch)
3
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material Code
H, K, M, N, P, S
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Stub
Length Of Cut Range (Decimal Inch)
0.6000 – 0.7000
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
+0.00000/-0.00043 in
Series
15
UNSPSC Code
27112803
