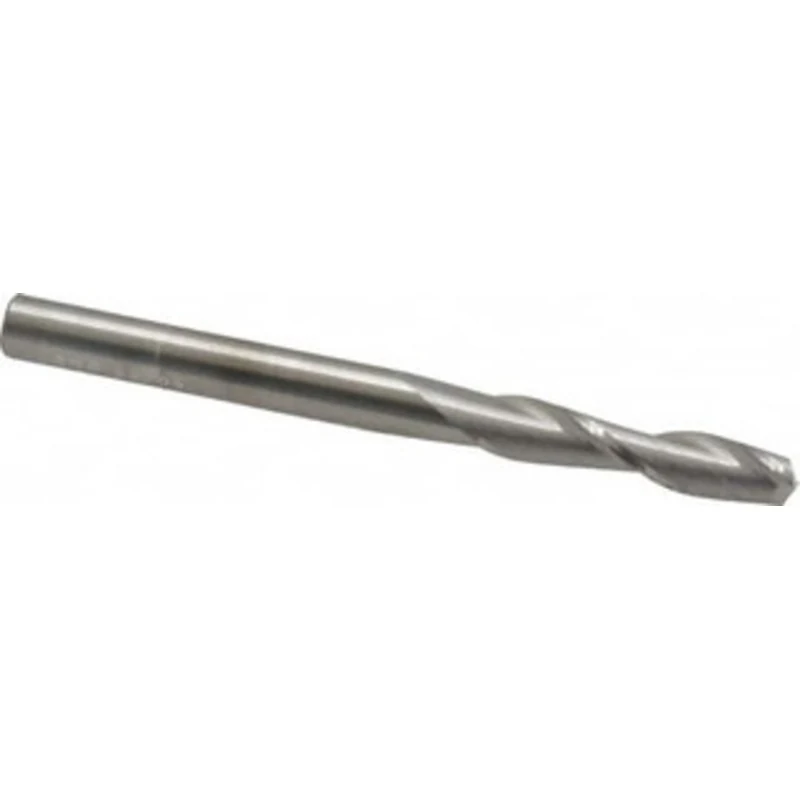

KYOCERA SGS 1/4, 1-1/8 LOC, 1/4 Shank Diam, 3 OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3L 33303 – 32141160

KYOCERA SGS 1/4″, 1-1/8″ LOC, 1/4″ Shank Diam, 3″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3L

Manufacturer Part #: 33303

S/N: 32141160

UNSPSC: 27112803

UPC: 691781333038

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.2500
Mill Diameter (Inch)
1/4
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.1250
Length of Cut (Inch)
1-1/8
Shank Diameter (Inch)
1/4
Shank Diameter (Decimal Inch)
0.2500
Overall Length (Decimal Inch)
3.0000
Overall Length (Inch)
3
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material Code
H, K, M, N, P, S
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Long
Length Of Cut Range (Decimal Inch)
1.0000 – 1.2500
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
+0.00000/-0.00035 in
Series
3L
