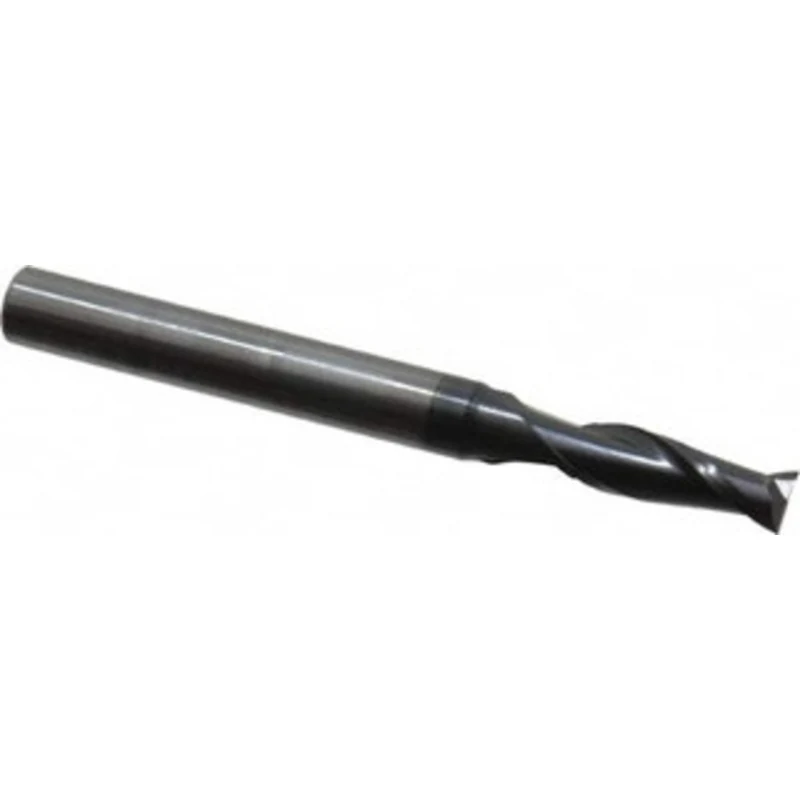

KYOCERA SGS 1/4, 3/4 LOC, 1/4 Shank Diam, 2-1/2 OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 38 Helix, Right Hand Cut, Right Hand Flute, Series 43 34704 – 43169192

KYOCERA SGS 1/4″, 3/4″ LOC, 1/4″ Shank Diam, 2-1/2″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 38 Helix, Right Hand Cut, Right Hand Flute, Series 43

Manufacturer Part #: 34704

S/N: 43169192

UNSPSC: 27112803

UPC: 691781347042

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.2500
Mill Diameter (Inch)
1/4
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.7500
Length of Cut (Inch)
3/4
Shank Diameter (Inch)
1/4
Shank Diameter (Decimal Inch)
0.2500
Overall Length (Inch)
2-1/2
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
38
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.7000 – 0.8000
Mill Diameter Tolerance
+0.00000/-0.00035 in
Shank Diameter Tolerance
+0.00000/-0.00035 in
Series
43
