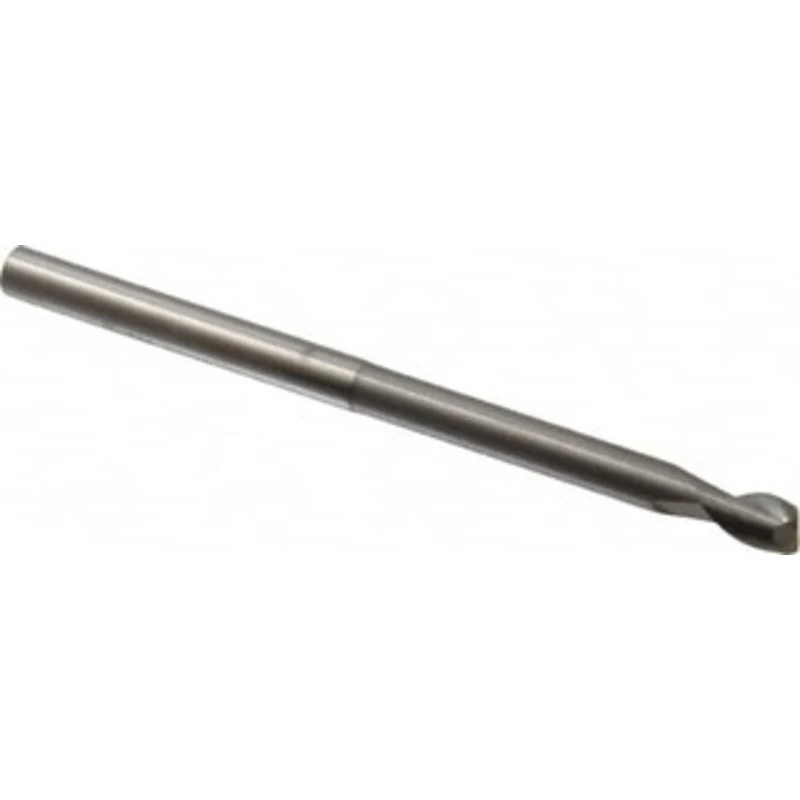

KYOCERA SGS 1/4, 3/8 LOC, 1/4 Shank Diam, 4 OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 35 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 47E 34640 – 09247016

KYOCERA SGS 1/4″, 3/8″ LOC, 1/4″ Shank Diam, 4″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 35 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 47E

Manufacturer Part #: 34640

S/N: 09247016

UNSPSC: 27112803

UPC: 691781346403

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.2500
Mill Diameter (Inch)
1/4
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.3750
Length of Cut (Inch)
3/8
Shank Diameter (Inch)
1/4
Shank Diameter (Decimal Inch)
0.2500
Overall Length (Decimal Inch)
4.0000
Overall Length (Inch)
4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
Yes
Helix Angle
35
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Length Type
Regular
Reach Length (Inch)
2-1/8
Mill Diameter Tolerance
-0.0001/-0.0004 in
Shank Diameter Tolerance
+0.00000/-0.00035 in
Series
47E
