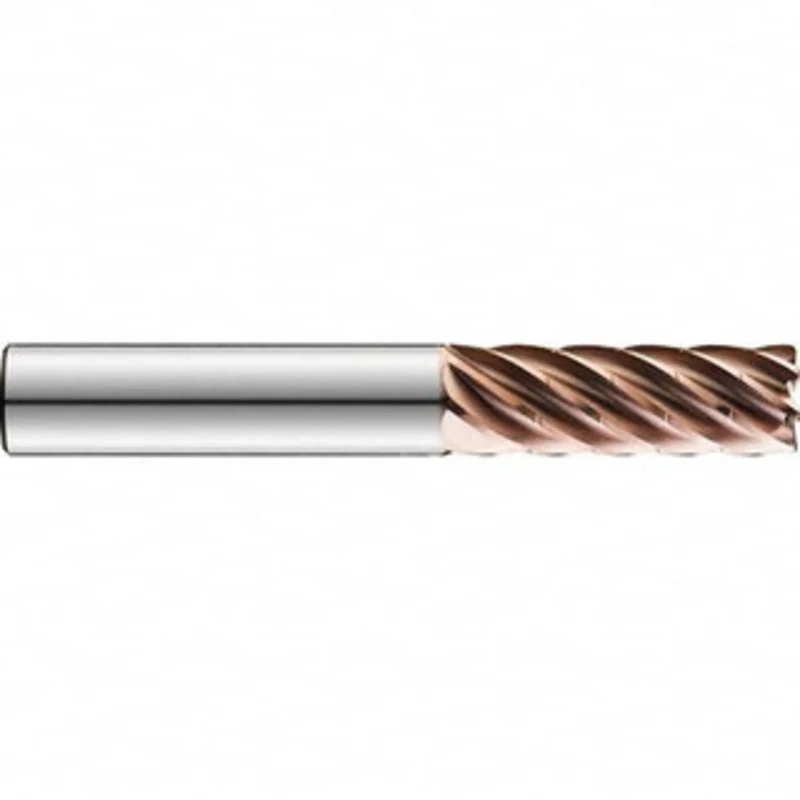

KYOCERA SGS 1, 4 LOC, 1 Shank Diam, 7 OAL, 7 Flute Solid Carbide Square End Mill Single End, Ti-NAMITE-M Finish, Spiral Flute, 37 Variable Helix, Right Hand Cut, Right Hand Flute, Extra Long Length 77325 – 15161946

KYOCERA SGS 1″, 4″ LOC, 1″ Shank Diam, 7″ OAL, 7 Flute Solid Carbide Square End Mill Single End, Ti-NAMITE-M Finish, Spiral Flute, 37 Variable Helix, Right Hand Cut, Right Hand Flute, Extra Long Length

Manufacturer Part #: 77325

S/N: 15161946

UNSPSC: 27112803

UPC: 691781773254

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
1.0000
Mill Diameter (Inch)
1
Number Of Flutes
7
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
4.0000
Length of Cut (Inch)
4
Shank Diameter (Inch)
1
Shank Diameter (Decimal Inch)
1.0000
Overall Length (Decimal Inch)
7.0000
Overall Length (Inch)
7
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
37
Primary Workpiece Material Code
H, K, M, N, P, S
Variable Helix
Yes
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Extra Long
Mill Diameter Tolerance
h6
Shank Diameter Tolerance
h6
Overall Length Tolerance
+0.062/-0.062 in, +0.062/-0.062 mm
Series
77
PSC Code
3445
