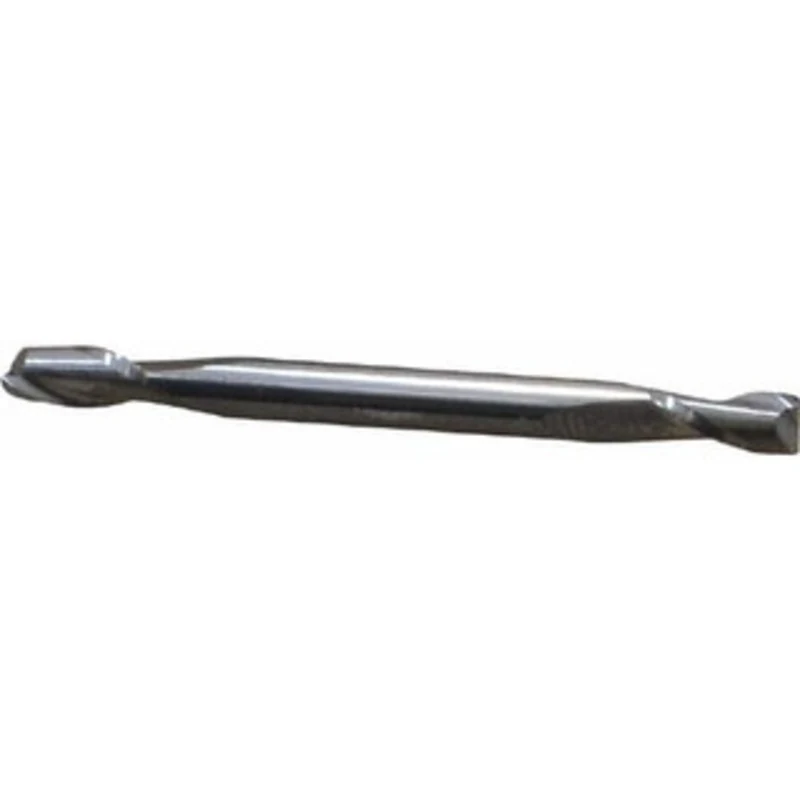

KYOCERA SGS 1/8, 1/4 LOC, 1/8 Shank Diam, 1-1/2 OAL, 2 Flute, Solid Carbide Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 15 31513 – 32158081

KYOCERA SGS 1/8″, 1/4″ LOC, 1/8″ Shank Diam, 1-1/2″ OAL, 2 Flute, Solid Carbide Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 15

Manufacturer Part #: 31513

S/N: 32158081

UNSPSC: 27112803

UPC: 691781315133

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1250
Mill Diameter (Inch)
1/8
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.2500
Length of Cut (Inch)
1/4
Shank Diameter (Inch)
1/8
Shank Diameter (Decimal Inch)
0.1250
Overall Length (Decimal Inch)
1.5000
Overall Length (Inch)
1-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material Code
H, K, M, N, P, S
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Stub
Length Of Cut Range (Decimal Inch)
0.2000 – 0.3000
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
+0.00000/-0.00032 in
Series
15
