KYOCERA SGS 1 per Side 1/8 Small End Diam 1-1/2 LOC 3-Flute Solid Carbide Tapered Ball End Mill Uncoated, 1/4 Shank Diam, 3 OAL, 1/16 Nose Radius, 28 Helix, Spiral Flute, Centercutting, Series 24B 32402 – 03281201

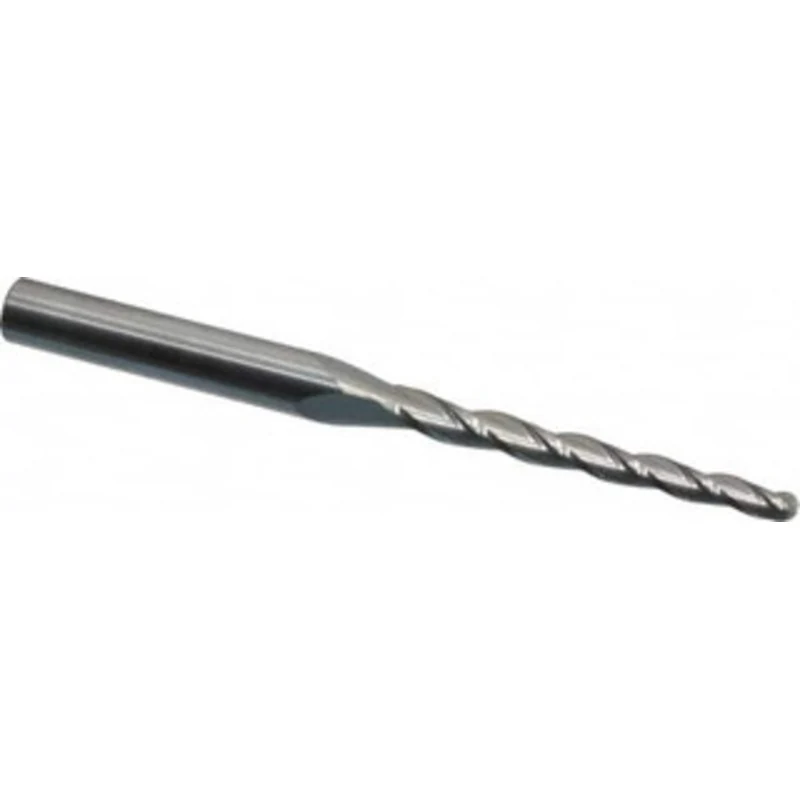

KYOCERA SGS 1 per Side 1/8″ Small End Diam 1-1/2″ LOC 3-Flute Solid Carbide Tapered Ball End Mill Uncoated, 1/4″ Shank Diam, 3″ OAL, 1/16″ Nose Radius, 28 Helix, Spiral Flute, Centercutting, Series 24B

Manufacturer Part #: 32402

S/N: 03281201

UNSPSC: 27112803

UPC: 691781324029

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1250
Length of Cut (Inch)
1-1/2
Taper Angle Per Side
1.00
End Mill Material
Solid Carbide
End Shape
Ball
Flute Type
Spiral
Overall Length (Decimal Inch)
3.0000
Overall Length (Inch)
3
Centercutting
Yes
Shank Diameter (Inch)
1/4
Nose Radius (Inch)
1/16
Small End Diameter (Inch)
1/8
Helix Angle
28
Shank Diameter Tolerance
-0.0001/-0.0004 in
Small End Diameter Tolerance
+0.0000/-0.0010 in
Primary Workpiece Material Code
H, K, M, N, P, S
Material Grade
Micrograin
Flute Direction
Right Hand
Series
24B
Length Of Cut (Decimal Inch – 4 Decimals)
1.5000
Coating/Finish
Uncoated
Number Of Flutes
3
