Home › Cutting Tools & Abrasives › End Mills › KYOCERA SGS 11/32, 13/16 LOC, 3/8 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, Variable Helix, Right Hand Cut, Right Hand Flute, Series Z1 36422 – 86993656
KYOCERA SGS 11/32, 13/16 LOC, 3/8 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Fin...
End Mills

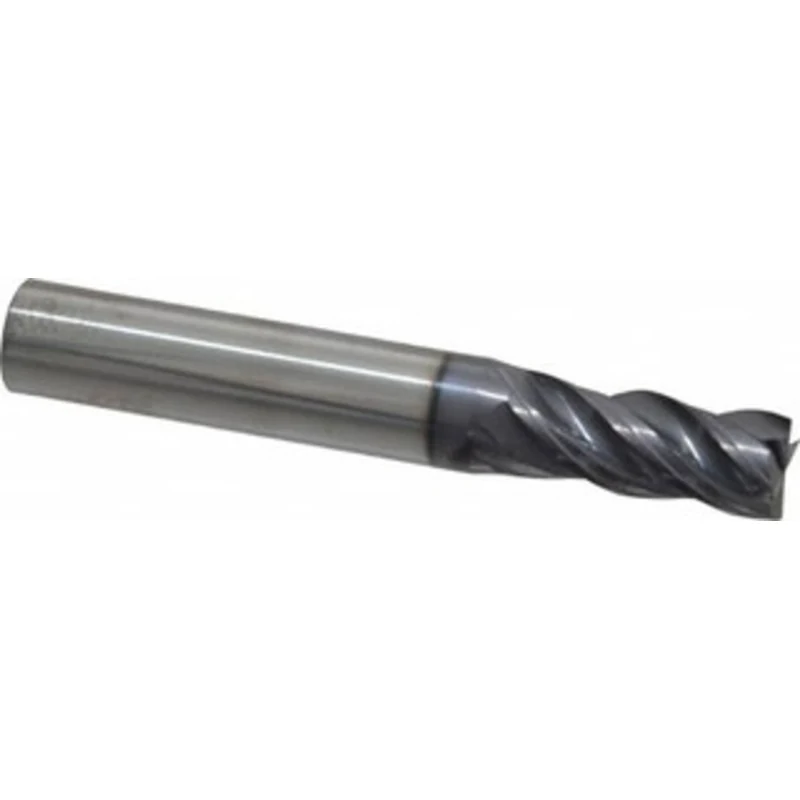

KYOCERA SGS 11/32, 13/16 LOC, 3/8 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, Variable Helix, Right Hand Cut, Right Hand Flute, Series Z1 36422 – 86993656

Original price was: $79.97.Current price is: $23.99.

Availability: 10 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 86993656
CATEGORY: End Mills
Description

KYOCERA SGS 11/32″, 13/16″ LOC, 3/8″ Shank Diam, 2-1/2″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, Variable Helix, Right Hand Cut, Right Hand Flute, Series Z1

Manufacturer Part #: 36422

S/N: 86993656

UNSPSC: 27112803

UPC: 691781364223

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3438
Mill Diameter (Inch)
11/32
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.8125
Length of Cut (Inch)
13/16
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Inch)
2-1/2
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Primary Workpiece Material Code
H, K, M, P, S
Variable Helix
Yes
Variable Index
Yes
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.8000 – 1.0000
Mill Diameter Tolerance
+0.0000/-0.0016 in
Shank Diameter Tolerance
+0.00000/-0.00035 in
Series
Z1
