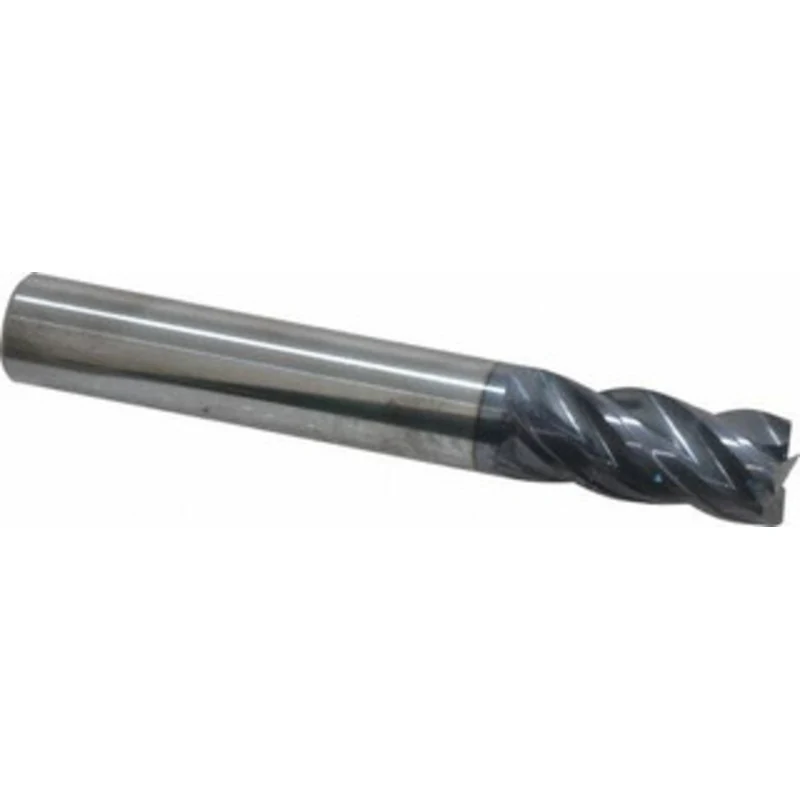

KYOCERA SGS 12mm, 26mm LOC, 12mm Shank Diam, 83mm OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, Variable Helix, Right Hand Cut, Right Hand Flute, Series Z1M 46366 – 86993789

KYOCERA SGS 12mm, 26mm LOC, 12mm Shank Diam, 83mm OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, Variable Helix, Right Hand Cut, Right Hand Flute, Series Z1M

Manufacturer Part #: 46366

S/N: 86993789

UNSPSC: 27112803

UPC: 691781463667

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
12.00
Mill Diameter (Decimal Inch)
0.4724
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.0236
Length of Cut (mm)
26.00
Shank Diameter (mm)
12.00
Overall Length (mm)
83.00
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Primary Workpiece Material Code
H, K, M, P, S
Variable Helix
Yes
Variable Index
Yes
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Regular
Length Of Cut Range (Decimal Inch)
1.0000 – 1.2500
Mill Diameter Tolerance
+0.000/-0.050 mm
Shank Diameter Tolerance
+0.000/-0.011 mm
Series
Z1M
