Home › Cutting Tools & Abrasives › End Mills › KYOCERA SGS 13/64, 5/8 LOC, 1/4 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 1 30125 – 32135139
KYOCERA SGS 13/64, 5/8 LOC, 1/4 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, S...
End Mills

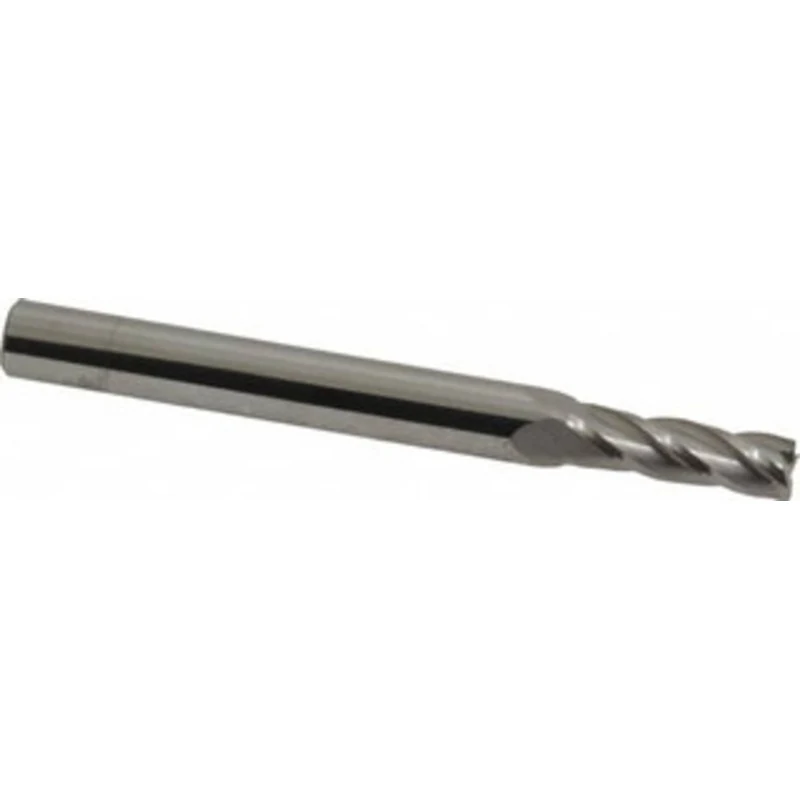

KYOCERA SGS 13/64, 5/8 LOC, 1/4 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 1 30125 – 32135139

Original price was: $33.22.Current price is: $9.97.

Availability: 5 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 32135139
CATEGORY: End Mills
Description

KYOCERA SGS 13/64″, 5/8″ LOC, 1/4″ Shank Diam, 2-1/2″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 1

Manufacturer Part #: 30125

S/N: 32135139

UNSPSC: 27112803

UPC: 691781301259

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.2031
Mill Diameter (Inch)
13/64
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.6250
Length of Cut (Inch)
5/8
Shank Diameter (Inch)
1/4
Shank Diameter (Decimal Inch)
0.2500
Overall Length (Decimal Inch)
2.5000
Overall Length (Inch)
2-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material Code
H, K, M, N, P, S
Variable Helix
No
Variable Index
Yes
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.6000 – 0.7000
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
+0.00000/-0.00035 in
Series
1

Product Information
